Robot Chassis

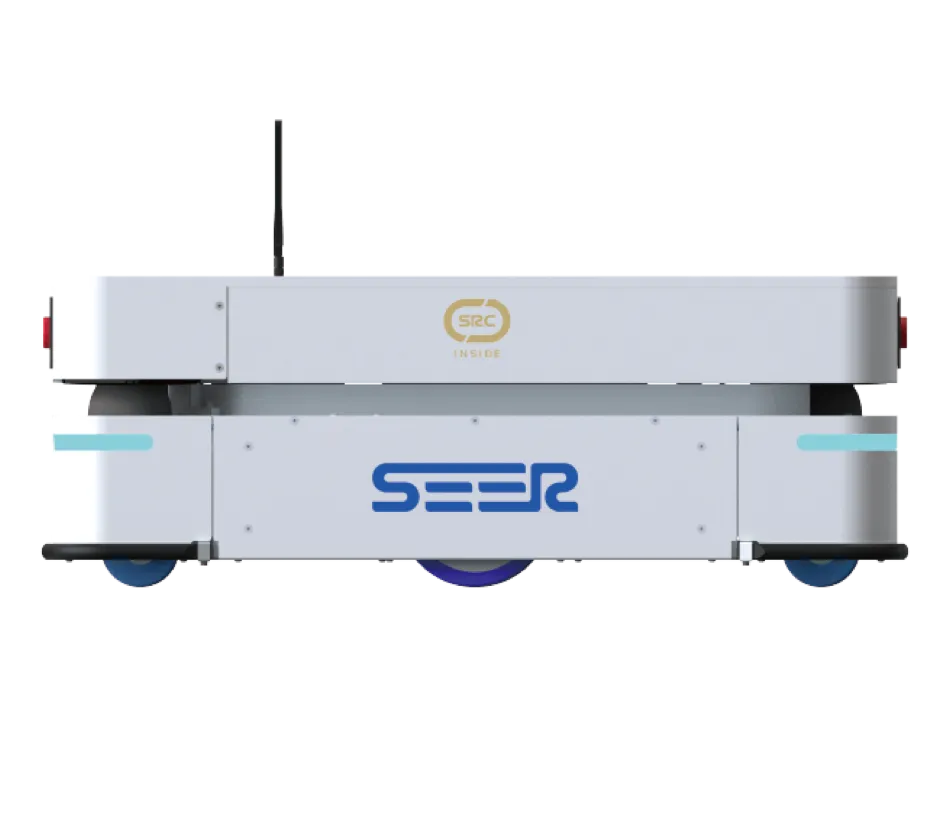

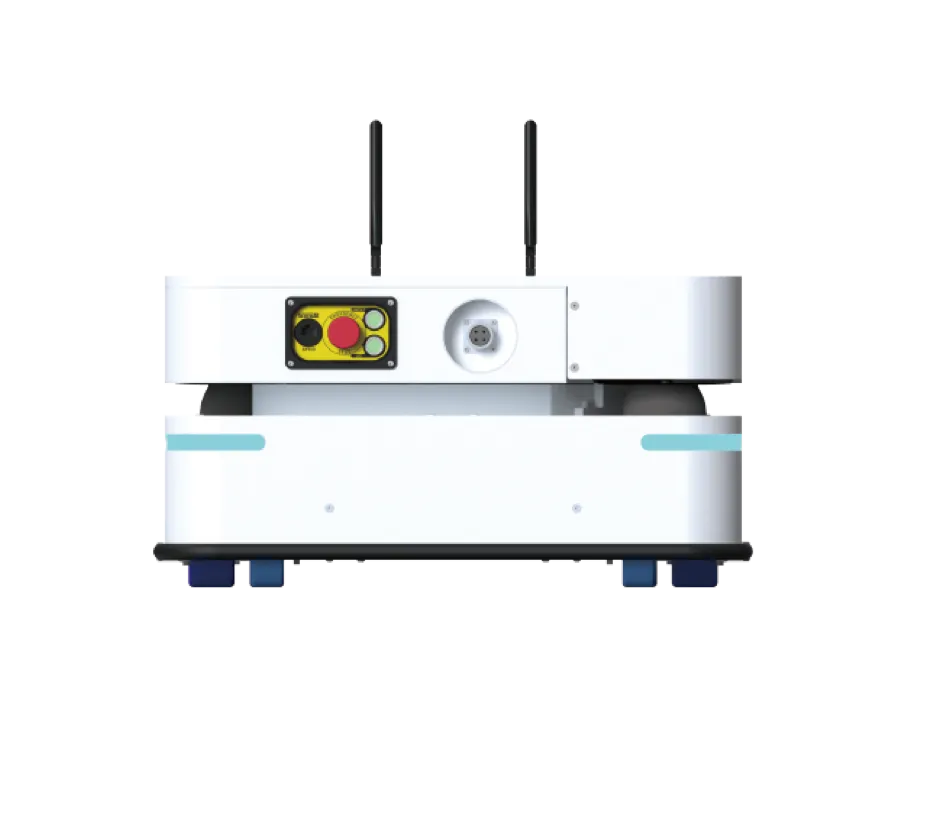

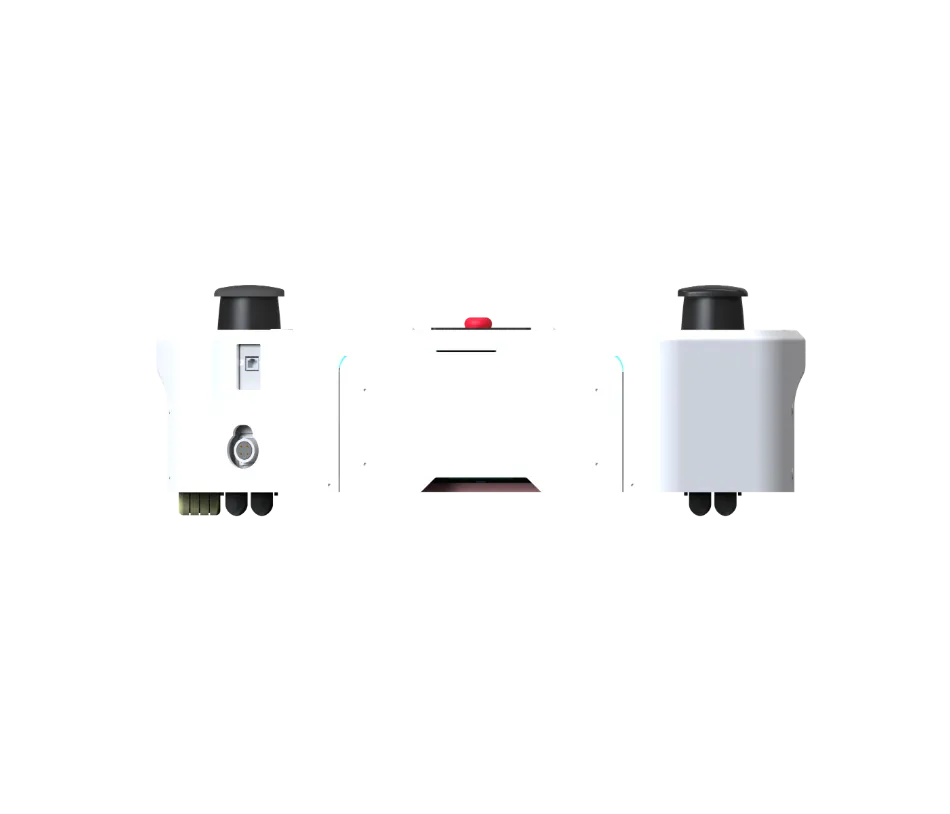

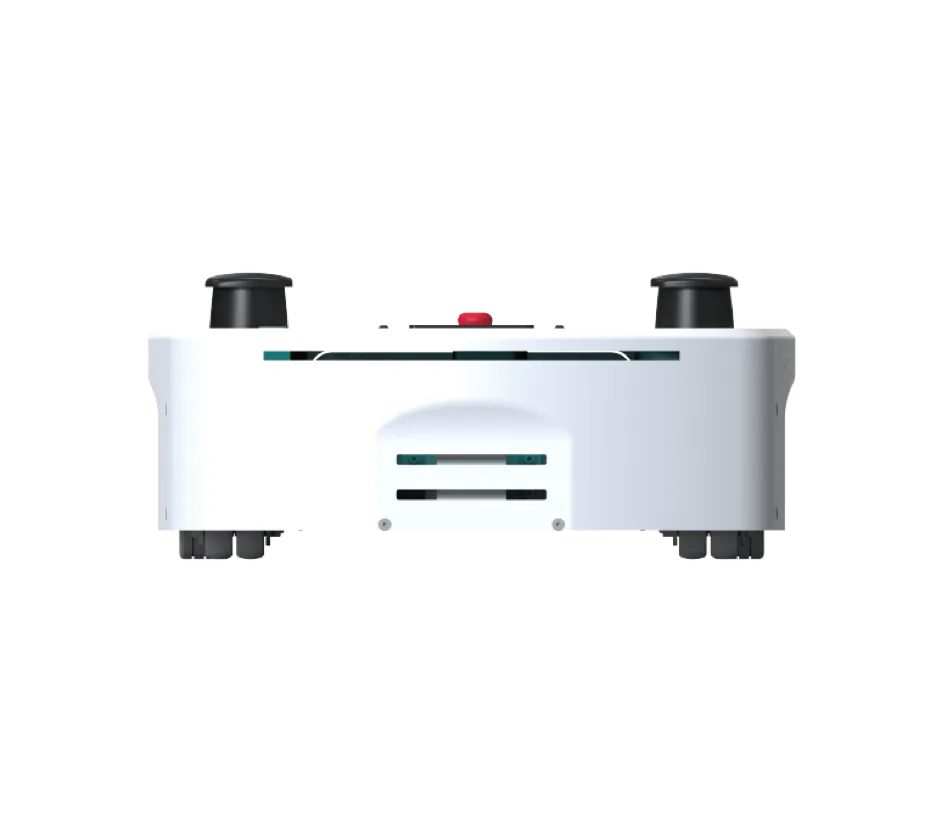

AMB-300XS
AMB-300XS

CE Certified, Safety Upgraded

icon

CE Safety Certified, Outstanding Performance & Excellent Safety Standard by Design

CE certification (ISO 3691-4:2020) provides the highest level of quality and safety assurance, which supports export.

icon

Rich Interfaces for Rich Applications

I/O, CAN, RS485 and other interfaces are reserved for the expansion of the upper-level mechanism, which can realize various robot applications.

icon

Accurate Positioning of ±5 mm

Navigation position accuracy of ±5 mm and navigation speed of 1.5 m/s help enterprises to work efficiently.

icon

Overall Functions and Hassle-free Expansion

Basic functions include map editing, model editing, positioning and navigation, basic motion model (differential), peripheral extensions (rollers, jacking, latent traction), interfaces, etc.

icon

CLASS 4 Cleanliness, More Reliable

Pass ISO CLASS4 cleanliness test, can be directly used in high cleanliness demand industries such as semiconductor.

icon

3D Obstacle Detection, More Secure

3D obstacle detection and reflector navigation are supported to further enhance product safety performance.

Product Parameters

rated-load

300

Rated Load (kg)
runtime

12

Run Time (h)
lidar-number

2

Lidar Number
rotation-diameter

972.6

Rotation Diameter (mm)
navigation-speed

≤1.5

Navigation Speed (m/s)
positioning-accuracy

±5, 0.5

Positioning Accuracy (mm,°)

Note: The actual product name shall be based on the nameplate.
