AGV Material Handling

AGV Material Handling See Product Details

AGV Material Handling

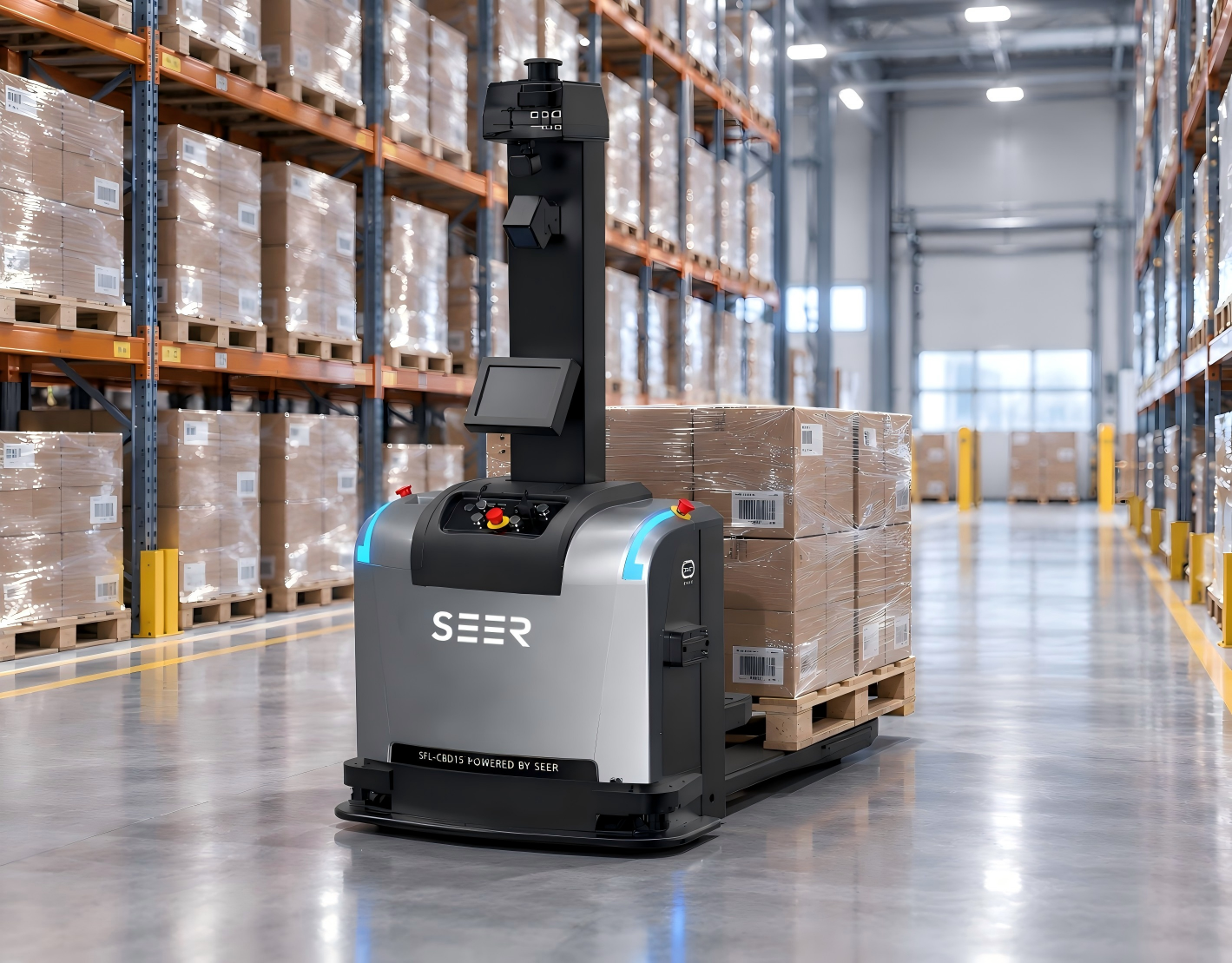

This AGV material handling intelligent pallet forklift has a load of 1,500 kg and a high moving speed of 2 m/s and can operate flexibly and safely in extremely narrow channels. SEER Robotics is the source manufacturer, directly supplying the bottom control core and the whole vehicle, providing you with highly competitive ex-factory prices and faster delivery speed.

This AGV material handling pallet forklift is mainly used in line-side connection, material warehousing, cross-regional circulation, and finished product warehousing.

Rated load
1500 kg
Navigation technology
Laser SLAM
Maximum driving speed
2 m/s

AGV Material Handling Characteristics

Efficient in Very Narrow Aisles
the vehicle width is only 932 mm, specially designed for compact storage, which can completely break through the material circulation bottleneck of crowded passages in the factory while ensuring large tonnage and heavy loads.
360° Full-Coverage Safety
equipped with multiple safety LiDAR and distance sensors: the scanning range covers the periphery of the whole vehicle, and the millisecond emergency stop and safe detour are realized in the man-machine highly mixed production line.
High-precision adaptive vehicle identification
equipped with an advanced vision algorithm, it can accurately identify non-standard-sized pallets and racks, greatly reducing the time cost of manual tally and placement error.
Large-area global map construction
supports the construction of a large-area map of up to 400,000 square meters, breaking the traditional area limitation and allowing a single handling equipment to cover the vast transportation space across workshops.
Long-term battery life of dual-charge module
the battery supports 46 amperes of fast charging, can run continuously for 4 to 6 hours after charging for one hour, and can be combined with dual batteries to realize uninterrupted operation for up to 10 hours.
Full-System Certification Compliance
available in standard and CE versions that fully meet European standards, meet various international stringent electromagnetic compatibility and safety protection standards, and make automation upgrades unimpeded.
AGV Material Handling Detailed Parameter Table
Parameter categories Parameter name Standard version parameter indicators European Standard Version Indicators
Basic Specifications Rated load capacity 1500 kg 1500 kg
Basic Specifications Equipment no-load weight 388 kg 403 kg
Running parameters Fully loaded driving speed 2 m/s 1.4 m/s
Running parameters Navigation and positioning accuracy ±10 mm ±10 mm
Environmental requirements Minimum turning radius 1524 mm 1532 mm
Battery Specifications Standard battery capacity 48 V and 23 Ah 48 V and 46 Ah
Core configuration Security-aware hardware Navigation and Obstacle Avoidance LiDAR Top-of-the-line imported security LiDAR

AGV Material Handling
Comparison Points

The AGV material handling solution uses a self-developed core controller to break the separation of software and hardware of traditional handling equipment. We directly issue instructions to the bottom layer so that the vehicle has a rare 2 m/s high speed and ultra-high stability, greatly improving the logistics rhythm of the whole plant. Unlike a single forklift that can only handle standard shelves, SEER Robotics equipment comes standard with stereo vision and adaptive systems, eliminating the need for large-scale modification of existing facilities. It can seamlessly access the original management network of the enterprise and realize the efficient and automatic deployment under the extremely low transformation cost.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Resolve the high-frequency docking error of non-standard carriers
correct the fork angle through high-precision sensors, greatly reducing the frequency of cargo damage and stuck shutdown caused by material placement deviation.
Eliminate cross-floor and cross-workshop scheduling islands
based on a strong system to schedule multiple vehicles of different types, automatically connect factory elevators and access control, and realize seamless flow of materials in the whole area.
Shorten the window period of high-intensity continuous operation
support three-minute fast manual power exchange and high-current automatic fast charging technology to ensure the continuity and on-time delivery of multi-shift production tasks during peak hours.

AGV Material Handling User Manual

One-click scanning and path planning
the control device automatically scans the factory layout, generates high-precision digital maps, and plans the optimal driving route in the system.
01
Safety parameters and operating speed setting
through the interactive interface to set the scope of the anti-collision protection area and the speed limit strategy of different road sections, to ensure a high degree of safety on-site man-machine cooperation.
02
Pallet identification configuration and task distribution
enter the size of the on-site cargo carrier, connect the equipment to the dispatching center system, and issue cross-regional handling and connection instructions in real time.
03
Power monitoring and module fast power exchange
the operator can monitor the remaining power in real time, perform a three-minute fast physical power exchange, or instruct the vehicle to turn on automatic fast charging when the power is urgent.
04

AGV Material Handling Target Users

Automobile manufacturing and parts processing enterprises

for mixed production and high-frequency material turnover needs, the equipment can be flexible in the compact workshop shuttle, have heavy auto parts on-time delivery, and improve the rhythm of the production line.

Semiconductor and consumer electronics manufacturing plants

for very narrow channels and high cleanliness requirements of electronic production lines, to provide smooth operation of intelligent handling and easy-to-deal-with precision parts cross-regional precision delivery.

Hardware tools and mechanical processing heavy factories

suitable for processing environments with dense stations and complicated pallet specifications, with super load and adaptive fork technology to completely replace heavy manpower and speed up material flow.

Third-party logistics and bonded storage center

for three-dimensional warehouses with large order throughput and dense shelves, it provides transportation solutions that support large-area maps, reduce sorting error rates, and improve storage efficiency.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

What is the actual maximum load of this AGV material handling equipment?
The equipment supports a rated load of up to 1500 kg, which is enough to meet the high-frequency transfer needs of heavy pallets in most manufacturing plants and logistics warehouses.
Can I drive and work normally in a very narrow warehouse shelf channel?
Actually, the width of the whole vehicle is compressed to 932 mm, and it has a very small turning radius, which is designed for the efficient passage of tight and narrow warehouse channels.
How to ensure that the vehicle will not have an accidental collision in the crowded production workshop?
The body is equipped with a safety LiDAR scanner with a 360-degree viewing angle and an anti-collision edge sensor. When a dynamic obstacle or person is detected, it will trigger an automatic emergency stop in milliseconds.
Can this set of equipment adapt to the transportation scene of multi-plant intercommunication with a very large area?
The system can support the construction of a super-large scope of 400,000 square meters at most, and a single piece of equipment can easily handle the complex and long-distance transportation tasks across workshops and long-distance corridors.
How long can the high-intensity transportation work be maintained when the battery is fully charged?
A single battery can run continuously for 4 to 6 hours after an hour of fast charging, and if you choose a dual-battery independent configuration scheme, you can achieve an eight- to ten-hour-long battery life guarantee.
Does your smart forklift support the local safety standards of overseas factories?
Yes, we specially provide the European standard version that has passed the comprehensive safety audit and fully meets all kinds of international stringent electromagnetic compatibility and field operation safety standard certification.
