The compact body design
has a body width of only 932 mm, which can easily shuttle through narrow channels in dense AGV warehouse automation projects, greatly improving the utilization rate of storage space.
DATE: 2026/09/27
AGV Warehouse Automation Advanced Technology
AGV Warehouse Automation

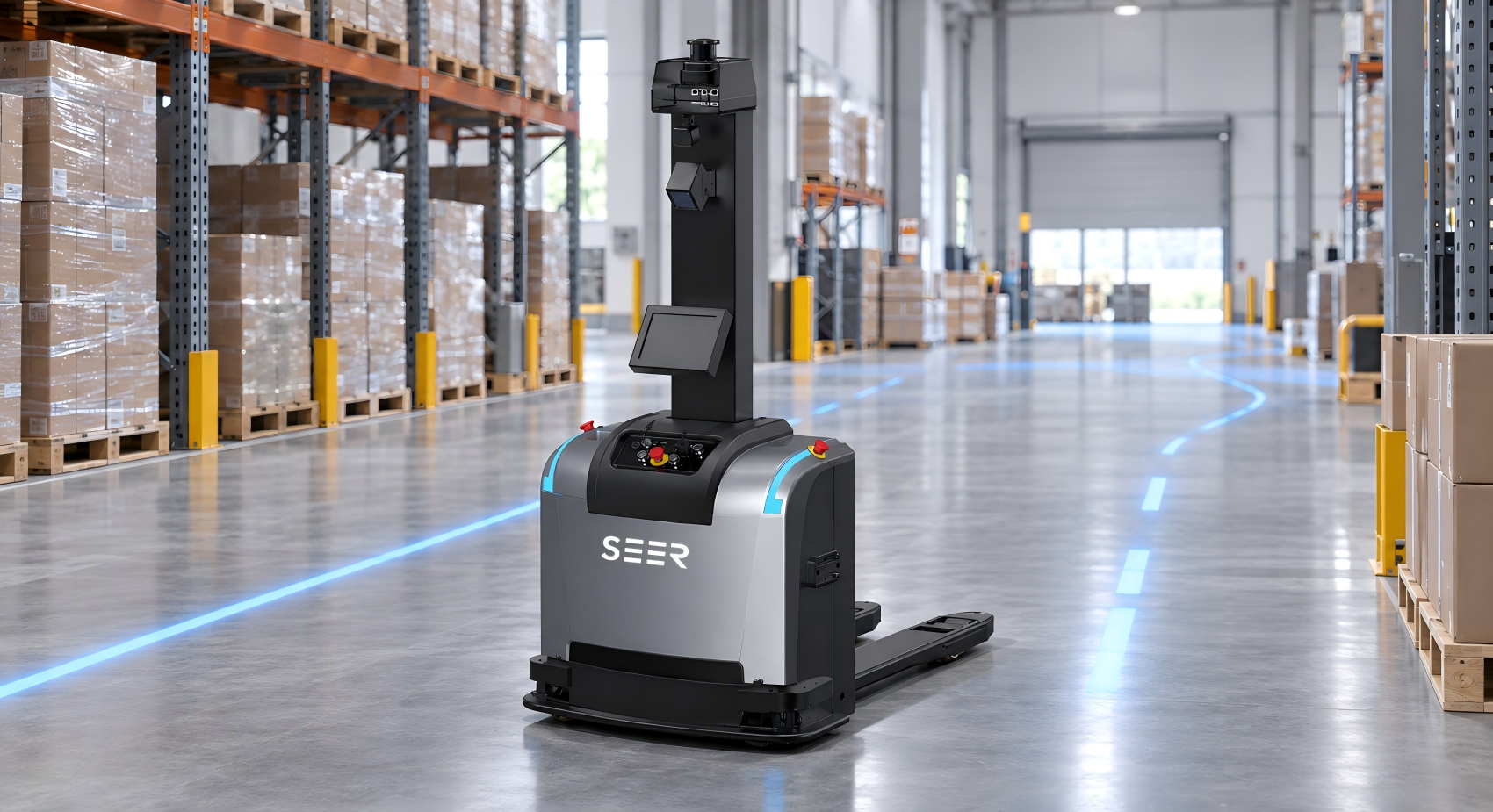

Our AGV warehouse automation intelligent forklift has a high load of 1.5 tons and an efficient handling capacity of two meters per second. SEER Robotics, as the source manufacturer that masters the core control technology, eliminates the middleman link and provides you with a highly competitive ex-factory price and a more stable delivery guarantee.
This equipment serves four automated logistics scenarios: narrow-aisle stacking, cross-zone material flow, efficient production-line linking, and finished-goods storage.
Load
1.5 tons
Navigation
LiDAR
Speed
2 m/s
Characteristics Of AGV Warehouse Automation
Panoramic safety protection
is equipped with 360-degree laser scanning, contact bumper, and ranging sensors, which effectively avoids the collision risk of man-machine mixed operation and ensures absolute safety of operation in the factory from the bottom of the hardware.
High-precision vehicle identification
is equipped with advanced algorithms to support a variety of sizes and non-standard material racks and wide-angle high-precision adaptive identification technology to make docking more accurate and significantly reduce the material drop and damage rate.
Its map-building capacity
reaches up to 400,000 m², easily breaking the regional restrictions of large logistics centers and meeting the seamless scheduling needs of super-large-scale factories.
The dual endurance guarantee
supports one-hour fast charging and three-minute fast power exchange. The dual-module battery combination realizes up to 10 hours of uninterrupted operation, greatly reducing the waiting time for production line downtime.
International standard certification
provides dual versions that meet European standards and conventional standards and accelerates the deployment of global integrators through a number of strict certifications, such as electromagnetic compatibility and transportation safety.
AGV Warehouse Automation Structured Detailed Parameter Table
| Parameter Indicators | Standard configuration | European safety standard configuration |
| Navigation and positioning types | Laser Synchronous Positioning and Mapping | Laser Synchronous Positioning and Mapping |
| Rated load capacity | 1500 kg | 1500 kg |
| Maximum operating speed | 2 m/s | 1.4 m/s |
| Navigation and positioning accuracy | ±10 millimeters | ±10 millimeters |
| Minimum turning radius | 1524 mm | 1532 mm |
| LiDAR Configuration Scheme | Single navigation plus dual obstacle avoidance LiDAR | European imported core security LiDAR |
| Power battery specifications | 48V 23Ah lithium battery | 48V 46Ah lithium battery |
| Full charge combined range | Four to six hours | Eight to ten hours |
| Applicable vehicle types | Various open pallets | Various open pallets |
| Security compliance certification | Electromagnetic compatibility and transportation safety certification | Includes multiple international certifications such as functional safety. |
AGV Warehouse Automation Contrast Point
In the field of AGV warehouse automation, our unit features a fully self-developed core controller that enables seamless integration with upper-level scheduling software with the upper scheduling software from the underlying logic. This completely abandons the interface barriers and communication delays caused by multi-brand patchwork in traditional integration solutions and greatly reduces the system debugging and troubleshooting costs of integrators at the project site. Compared with ordinary handling equipment on the market, this product not only performs well in single-machine motion performance and environmental perception but also greatly improves the equipment’s dynamic rate in continuous operation environments by virtue of its original modular dual battery and fast power exchange design. Whether it is a domestic factory or overseas, rich product certification can ensure the compliance and smooth delivery of the project.
SEER Robotics eliminates multi-vehicle collaborative deadlocks in the face of channel congestion in mixed-field scheduling,
thanks to global path planning and algorithm optimization, allowing units of different sizes to pass smoothly through narrow aisles.
SEER Robotics overcomes high-frequency turning and scratching on narrow lanes:
in view of the current situation of narrow storage lanes, a compact body and a small turning radius design are adopted to significantly reduce shelf collision damage.
SEER Robotics breaks through the docking offset of non-standard pallets
through the deep learning vision algorithm to adaptively identify unconventional-sized pallets to ensure that the goods of each operation are smoothly forked without errors.
AGV Warehouse Automation User Manual
Network and environment configuration:
start up and connect to the workshop wireless network, collect point cloud data of the whole plant through the manual cart, and generate a clear global operation map.
01
Model and parameter calibration:
accurately adjust the vehicle size and sensor parameters in the configuration software, and seamlessly mark the charging pile and working connection point on the map.
02
Handling task setting:
specific handling instructions are issued through the central control system, and the angle and height of docking various open pallets are flexibly set according to the site requirements.
03
Operation monitoring and maintenance:
after the automatic operation is put into operation, the operation status is checked in real time through the system. When the power is low, a special person will pull and exchange the power at high speed for three minutes.
04
AGV Warehouse Automation Applicable to Crowd
Automobile manufacturing automation integrators:
system integrators for undertaking automation projects in automobile assembly plants and engine workshops to meet the needs of safe handling and high-beat circulation of large parts in a complex environment of man-machine mixing.
Semiconductor dust-free workshop service provider:
suitable for the service team to undertake intelligent logistics projects in high-cleanliness workshops, to meet the millimeter-level precision docking requirements of wafer carriers and other precision materials with extremely low errors between production machines.
New energy lithium battery production line engineer:
for lithium battery raw material storage and production line handling engineering contractors, adapt to the high-temperature operating environment to meet the double battery life and 24 hours of uninterrupted high-intensity scheduling tasks.
Tripartite logistics and e-commerce warehouse revamers:
for the need to quickly upgrade the traditional dense storage space of the transformation team to meet the large area of the construction of maps and narrow high-frequency access to goods of the all-round automation upgrade needs.
Certificates And Factories
FAQ
Q: Is this forklift easy to lose its position in a super-large logistics warehouse?
A: No, the equipment supports map recognition with a large area of up to 400,000 square meters. With accurate laser synchronous positioning technology, it can still maintain stable navigation in a vast and dynamically changing space.
Q: Our factory has many non-standard material racks of different specifications. Can this equipment handle it?
A: Absolutely. The forklift is equipped with a high-precision recognition algorithm that can adaptively identify nine-legged pallets, open pallets, and various unconventional-size racks at a wide angle to ensure accurate fork picking.
Q: The original walkway in the workshop is very narrow. Can the shelf equipment pass normally without modification?
A: The narrowest width of the equipment body is only 932mm, and the minimum turning radius is about one and a half meters. It is specially designed for unmodified crowded industrial aisles and dense stacking areas.
Q: The production line needs multi-shift continuous high-intensity production. How to solve the problem of insufficient forklift power?
A: The forklift supports a one-hour fast full charge and uses an innovative modular battery. Skilled operators can complete the power change in just three minutes, and the dual power combination can provide up to ten hours of battery life.
Q: When a worker or forklift suddenly enters the automatic passage, can the equipment stop safely in time?
A: The equipment is equipped with 360-degree panoramic laser collision avoidance, mechanical collision avoidance, touch edge, and ranging sensors. Once a dynamic obstacle is detected, it will immediately trigger multiple hardware-level safety mechanisms and an emergency stop.
Q: If we need to export a complete set of automation equipment to European factories, is there a compliant version?
A: Yes, the series is available in both the regular version and the European safety standard version. The European version is equipped with imported core safety components and has obtained a number of international certifications, fully meeting the stringent requirements for offshore deployment.
