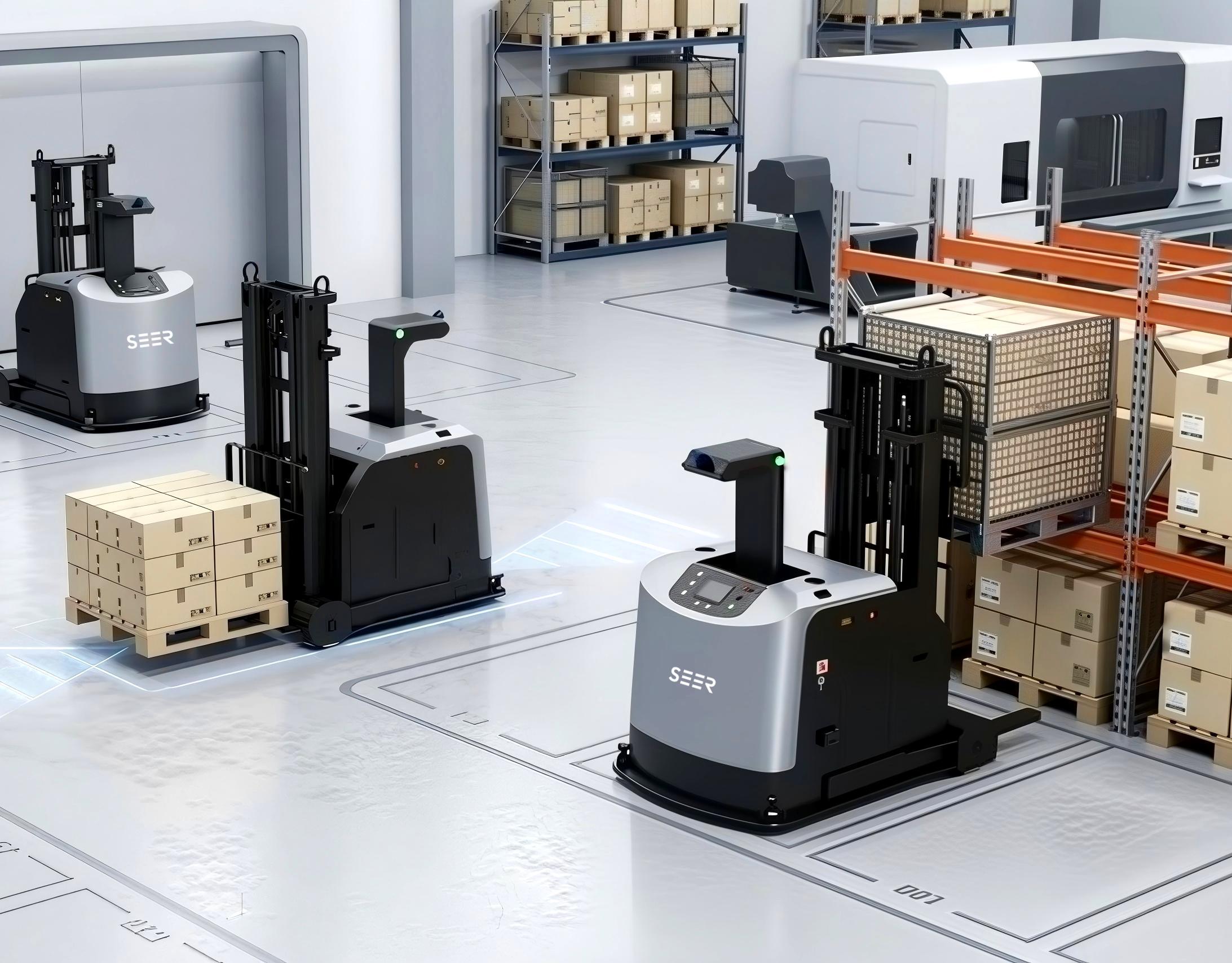

Automated Forklift System

Automated Forklift System High-Efficiency System

Automated Forklift System

Relying on the industry-leading intelligent control system, SEER Robotics provides you with an advanced automated forklift system integrating software and hardware to realize high-precision material safety handling and integrated cooperative operation of the whole plant. We are the source of intelligent technology manufacturers, refusing middlemen layer price increases and directly providing mass customization and original factory comprehensive technical support to ensure that the ex-factory price is very competitive and global delivery speed is faster.

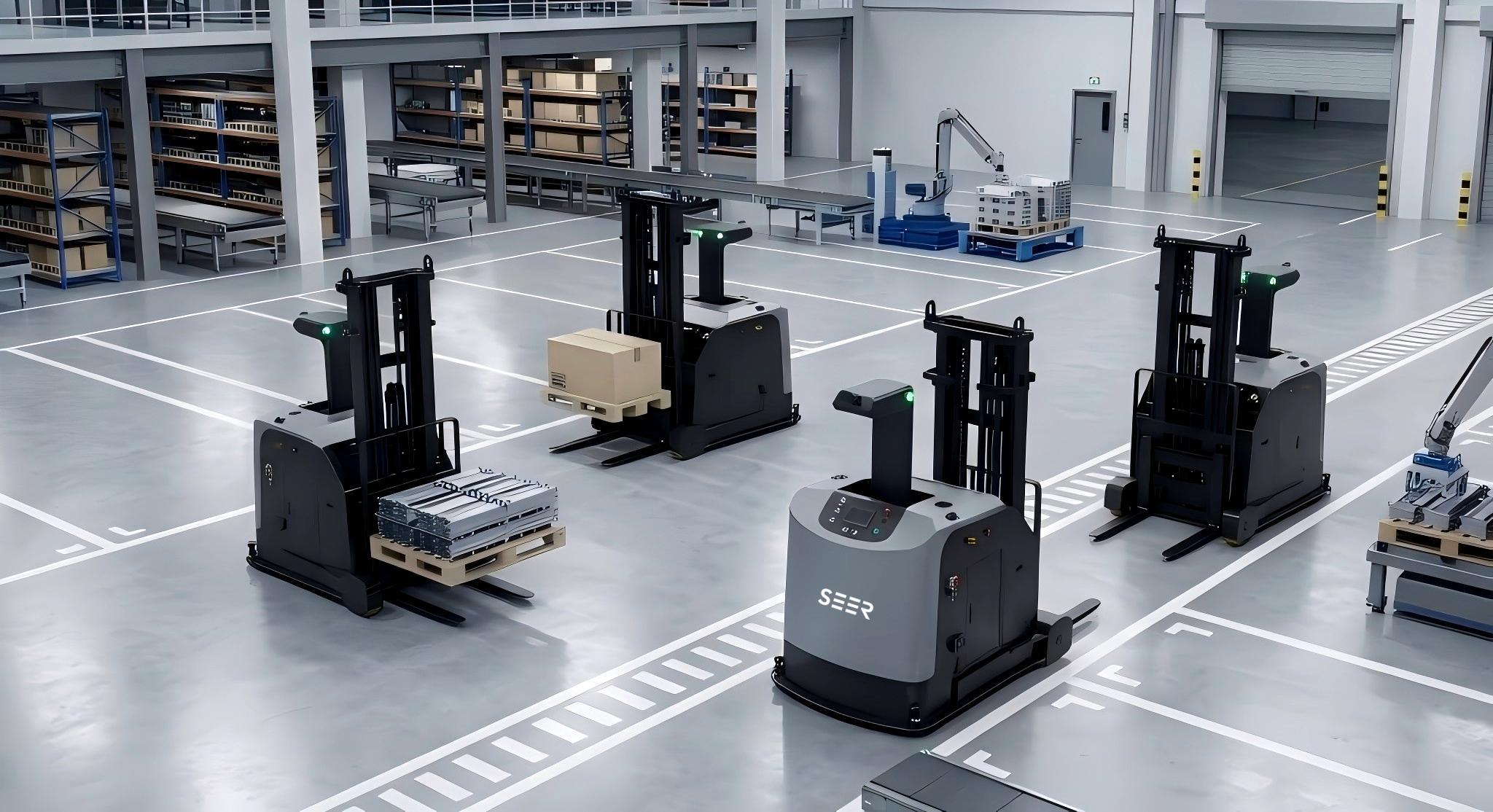

The automated forklift system is mainly used for high-level shelving of pallet warehouses, end-to-end material transportation of production lines, storage in high-density and dense storage areas, and long-distance automatic transportation between multiple storage processes.

Navigation type:
laser or QR code
Load range:
300 kg to 3 tons
Maximum lifting height:
up to 3,500 mm
Automated Forklift System

Characteristics Of The Automated Forklift System

Proprietary Core Brain:
Equipped with a highly integrated SRC-series central controller that seamlessly integrates positioning, navigation, and multi-sensor management, enhancing vehicle operational efficiency and factory-level stability from the ground up.
High payload and long-range performance:
It boasts an ultra-large rated load capacity of 3 tons and is equipped with a high-performance lithium battery, delivering an extended endurance of ten to twelve hours and supporting rapid battery swapping in just two minutes.
AI-based adaptive carrier recognition:
Leveraging advanced visual AI recognition algorithms and a depth camera, the system can accurately identify, in real time and from multiple angles, various carriers such as nine-legged pallets, open pallets, and non-standard material cages.
Flexible, multi-scale adjustable forks:
The fork spacing can be manually or automatically adjusted within the range of 450 to 750 millimeters, ensuring seamless compatibility and adaptation to a wide variety of pallet and racking specifications.
Ultra-wide-angle three-dimensional safety protection:
Equipped with industrial-grade obstacle avoidance lidar, it provides a 360-degree super-large scanning range with a detection distance of 30 meters, thus ensuring the safety of high-density man-machine mixed environments in all directions.
Intelligent stacking safety detection mechanism:
Real-time ultrasonic waves are used to detect the separation state of forks and goods, and adaptive dynamic laser monitoring is used to ensure the safety of the whole process of high stacking and goods off the ground.
Automated Forklift System Structured Detailed Parameter Table
Parameter classification Performance indicators Parameter specifications details (based on standard specifications)
Basic parameters Navigation and positioning types Laser-based natural feature positioning and navigation
Basic parameters Rated load capacity Three thousand kilograms
Basic parameters Load center distance 500 mm
Basic parameters Standard lifting height Three thousand or three thousand five hundred millimeters
Basic parameters Fork outer width range 450 mm to 750 mm
Performance indicators Fully loaded driving speed The maximum speed of linear full-load operation can reach one meter per second.
Performance indicators Unloaded driving speed The maximum speed during straight-line no-load operation is 1.5 meters per second.
Performance indicators Navigation Position Accuracy Stable within ±10 mm
Performance indicators Navigation angle accuracy Angle deviation less than or equal to plus or minus one degree
Performance indicators Operational capability Slope less than 3%, over-slope 10 mm, over-slope 30 mm.
Security Configuration Number of LiDARs Equipped with one or more industrial-grade radar sensors
Security Configuration Braking distance Braking distance of 30 centimeters or less at a speed of 1 meter per second
Power parameters Battery life specifications A 48-volt, 315-ampere-hour lithium battery can operate continuously for 10 to 12 hours.

Automated Forklift System Comparison
Point

Compared with the same type of automatic handling equipment on the market, this automated forklift system based on an advanced control brain has strong scene adaptability and higher single-machine deployment efficiency. Traditional equipment often needs to greatly change the plant environment and rely on the scheduling of a single vehicle type, while the SEER Robotics system not only supports laser navigation without changing the existing workshop environment but also enables multi-vehicle full-scene collaborative operation of trucks, forward-moving vehicles, and other robots under a unified and open platform architecture.

Automated Forklift System
Workshop environment zero transformation:
The traditional system deployment needs to lay magnetic strips or magnetic nails on the ground. To solve this problem, SEER Robotics uses high-precision laser natural feature navigation technology to achieve zero environmental changes immediately.
Multi-system data island collaboration:
In view of the high cost of system connection caused by the coexistence of multiple models, we use the hardware and software integrated platform and RDS robot scheduling management system through multi-model collaboration and seamless docking factory management software.
High-density man-machine mixed safety hazards:
For traditional forklifts in narrow spaces with many blind spots and easy collisions, we have built-in multi-LiDAR and ultrasonic sensing to achieve all-around three-dimensional protection and have a perfect exception handling mechanism.

Automated Forklift System Instructions

Environmental mapping and system deployment:
The actual operator controls the vehicle to drive slowly in the factory area through a one-stop implementation tool, and the system can automatically build a complete high-precision electronic map based on the core radar.
01
Site marking and route planning:
The technician marks the receiving point, unloading point, and charging pile on the digital map of the configuration software and uses the low-code business process engine to customize the running path of the forklift according to the on-site process.
02
Pallet parameters and algorithm configuration:
Adjust the visual AI recognition parameters according to the actual pallet size used on-site, and turn on the 3D camera adaptive adjustment so that the fork can be stably inserted into the carrier.
03
Digital scheduling and one-button start:
The handling requirements are connected to the central system software, and the RDS scheduling system will automatically distribute material tasks to vehicles according to the principle of proximity, thus realizing unmanned automatic closed-loop operation and multi-machine cooperation.
04

Automated Forklift System For People

Automobile and parts manufacturing industry:

Suitable for large-scale vehicle factories and parts workshops, due to the large material flow span and complex processes, the system can provide multi-vehicle hybrid scheduling and the whole process of intelligent automated transportation solutions.

Automobile and parts manufacturing industry
New energy and lithium photovoltaic plant:

Suitable for production enterprises with strict requirements on environmental cleanliness and process accuracy. The system supports high-precision operation and perfectly fits the efficient handling of batteries, raw materials, and various heavy materials.

New energy and lithium photovoltaic plant
Modern warehousing and third-party logistics:

Suitable for warehousing centers facing high traffic volume and large batches. The system supports a balanced heavy-load, high-level stacking height of up to three tons, which can greatly liberate manpower and effectively control warehousing operation costs.

Modern warehousing and third-party logistics
Electrical and mechanical equipment workshop:

Suitable for manufacturing enterprises with frequent transfer of semi-finished products and a wide variety of materials between processes. The system can provide adaptive fork adjustment and precise handling to solve the problem of cross-regional freight scheduling.

Electrical and mechanical equipment workshop

Certificates And Factories

Certificates And Factories

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

Certificates And Factories

FAQ

Q: Does this automated forklift system need to change our existing warehouse floor and shelf environment?
A: No, the system supports laser natural feature navigation and can directly build maps and run in the existing environment without laying magnetic strips on the ground or putting reflective boards on the wall.
Q: How does an automated forklift ensure the absolute safety of operators and other mobile devices in the workshop?
A: The vehicle is equipped with an advanced controller and industrial-grade obstacle avoidance radar, a 3D obstacle avoidance camera, and ultrasonic sensors, which can fully detect all kinds of obstacles and achieve all-round three-dimensional protection.
Q: In a complex and dense storage environment, what is the fork docking accuracy of the automated forklift system?
A: Based on the powerful controller and core algorithm, the navigation position accuracy of the system can be stably maintained within ±10 mm, and the navigation angle accuracy can be maintained within ±1°.
Q: If there are many kinds of pallets with different colors and sizes in the warehouse, can the system automatically identify them?
A: Yes, the system supports the optional 3D depth camera. Through the visual AI solution, it can automatically identify pallets and cages with various specifications and angles and complete adaptive loading and unloading.
Q: Can the automated forklift system interface with the existing digital management system of the factory?
A: Yes, the system has an open digital software interface, which can be seamlessly integrated into the M4 intelligent logistics management system or RDS system and can efficiently interact with the existing system software of the enterprise.
Q: What is the battery life and charging mode of the system, and can it meet the uninterrupted operation of the factory?
A: The system is equipped with a high-performance lithium iron phosphate battery, which provides ten to twelve hours of long battery life; supports rapid battery swapping in just two minutes; and also supports automatic and manual charging to ensure the efficient operation in all weather.
