Automated Guided Vehicle Forklift

Automated Guided Vehicle Forklift See Product Details

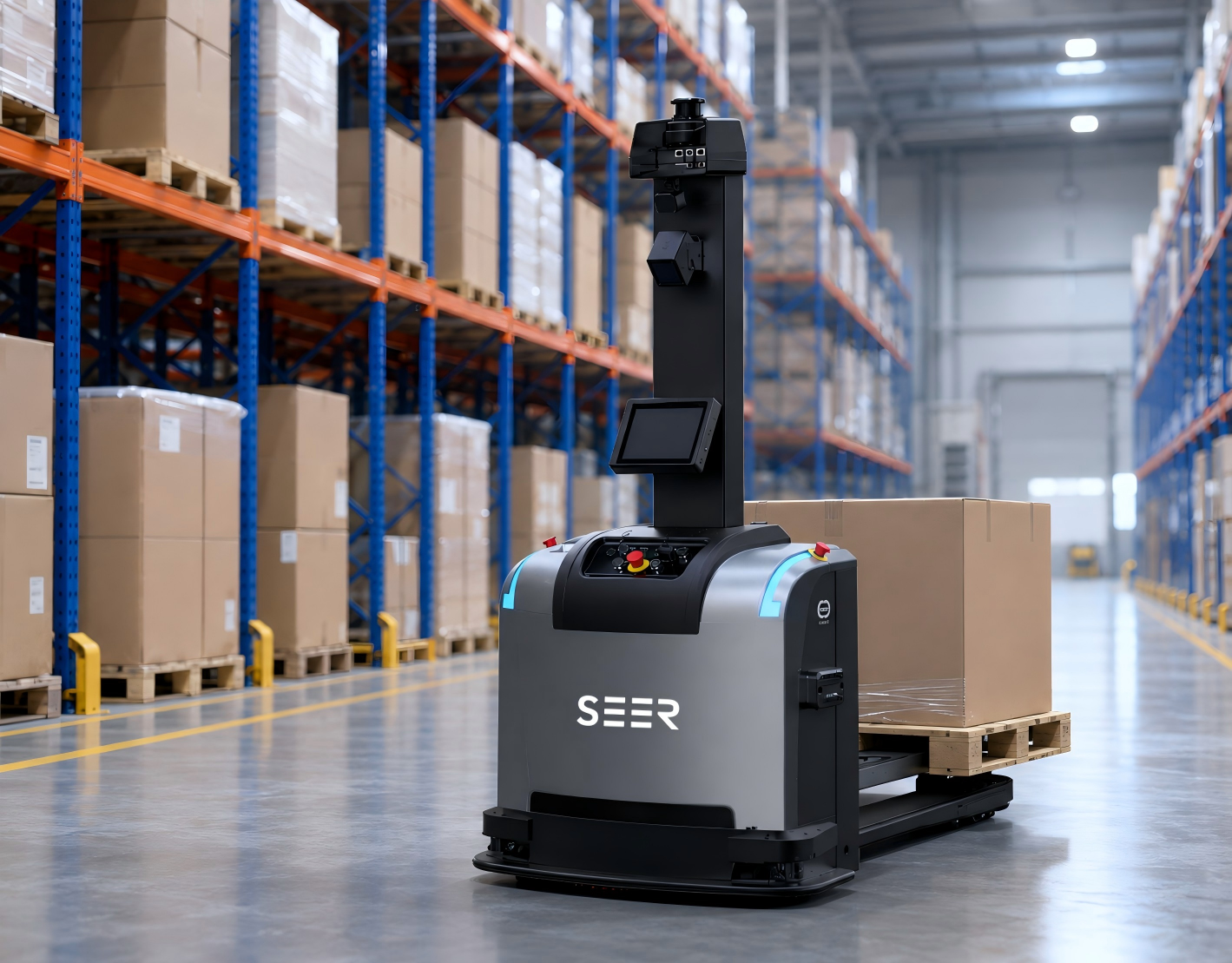

Automated Guided Vehicle Forklift

SEER Robotics' autonomous navigation unmanned forklift realizes a 1.5 T super-large load with a compact body, has a 360° full-field-of-view laser obstacle avoidance, has a dual-battery system with extended endurance, and is specially built for narrow channels and high-dynamic storage. As the world’s leading manufacturer of robot control systems and core hardware sources, SEER Robotics eliminates middlemen and provides first-hand mass customization services to ensure that you are provided with highly competitive ex-factory prices and faster global delivery speeds.

Automated guided vehicle forklifts are mainly used in automobile manufacturing line-side transfer, 3C electronic intensive storage, new energy high-shelf storage, and cold chain logistics pallet handling.

Product Name
Autonomous handling forklift
Navigation type
Laser SLAM
Rated load
1500 kg

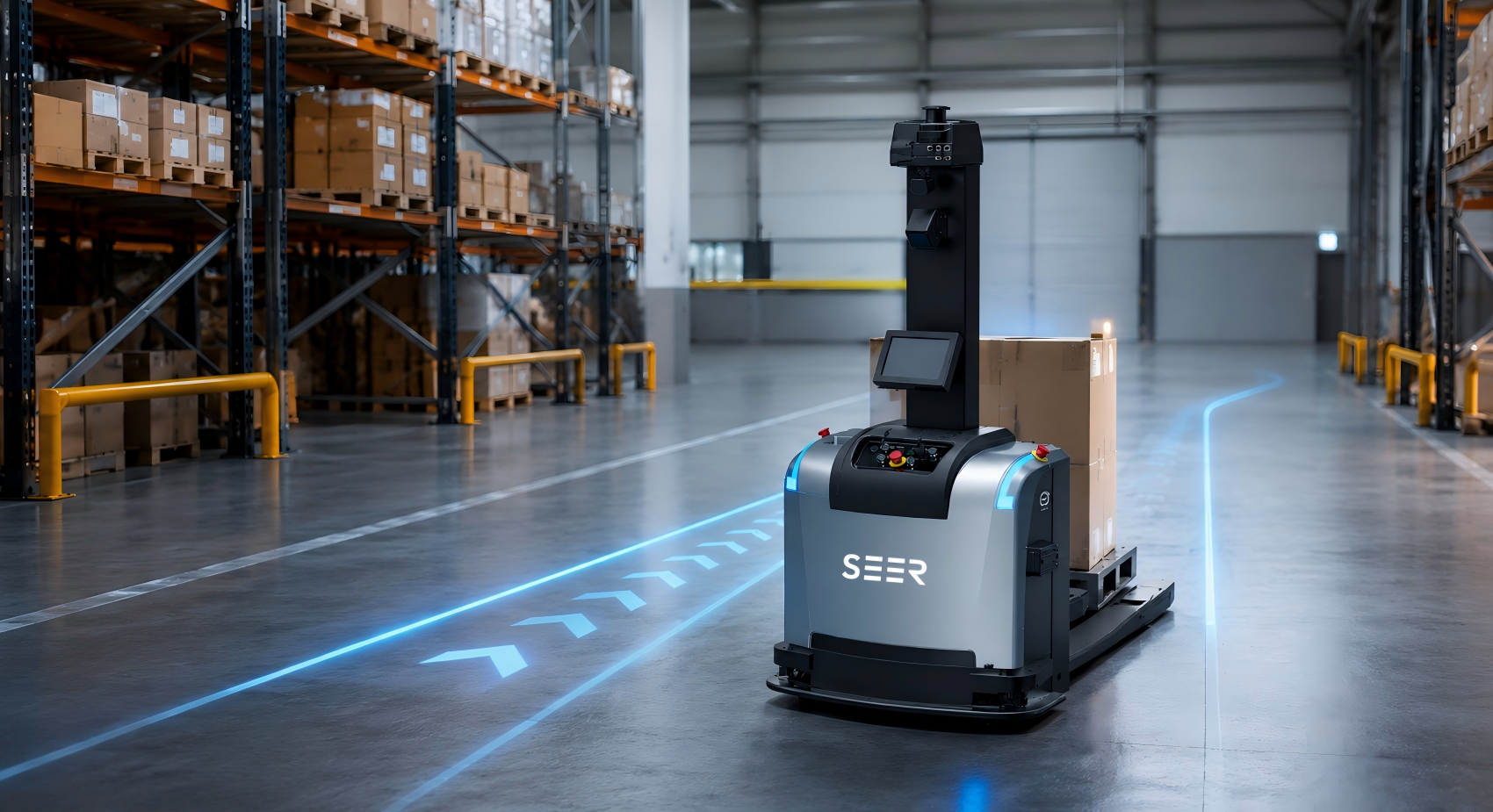

Automated Guided Vehicle Forklift

Automated Guided Vehicle Forklift Characteristics

Both compact body and super-large load
The width of the body is only 932mm, which can be unimpeded in a very narrow passage of about 1 meter, and has a strong carrying capacity of up to 1500kg, greatly improving the utilization rate of workshop space.
360 full-field laser safety protection
Fully equipped with safe anti-collision laser radar, safe touch edge and distance sensor to realize all-round obstacle avoidance without dead angle and hardware self-inspection, and ensure zero accidents in high-dynamic man-machine mixed-field operation.
Multi-carrier intelligent high-precision identification
Relying on advanced laser and AI vision technology, it supports wide-angle identification of nine-leg pallets, Sichuan-style pallets, non-standard material racks, and cages, greatly reducing the docking misalignment rate of non-standard carriers.
Large-area map building and seamless roaming
Support the construction of large-area maps up to 400000 ㎡, break the space limitation of the factory area, and have a powerful Wi-Fi roaming function to ensure long-distance transportation across regions without dropping.
Dual battery combination to achieve long battery life
The use of advanced fast charging technology, a single charge of 1 hour can efficiently replenish energy, and a dual battery modular combination can achieve full load continuous operation for 10 hours, significantly shortening the downtime of equipment.
A full set of international authoritative safety certifications
The product conforms to the ISO 3691-4 international safety standard and has passed a number of EU CE core certifications such as EMC and RED, fully meeting the stringent compliance access requirements of high-end markets at home and abroad.
Automated Guided Vehicle Forklift Structured Detailed Parameter Table
Parameter categories Technical indicators Domestic Standard Version (SFL-CBD15) International EU version (SFL-CBD15-CE)
Basic characteristics Navigation mode/operation method Laser SLAM / Automatic Navigation and Manual Control Laser SLAM / Automatic Navigation and Manual Control
Basic characteristics Rated load capacity 1500 kg 1500 kg
Basic characteristics Applicable Pallet Types Open tray Open tray
Size and weight Forklift dimensions (length x width x height) 1712 x 932 x 1902 mm 1685 x 980 x 1906 mm
Size and weight Vehicle curb weight (including battery) 388 kg 403 kg
Size and weight Standard lifting height / Minimum fork height 205 mm / 75 mm 205 mm / 75 mm
Operating performance Maximum driving speed (fully loaded/unloaded) 2 m/s 1.4 m/s
Operating performance Navigation positioning accuracy / angular accuracy ±10 mm / ±1 degree ±10 mm / ±1 degree
Operating performance Minimum turning radius / Maximum climbing ability 1524 mm / less than 5% 1532 mm / less than 5%
Power System Battery type / Battery capacity specifications Lithium iron phosphate battery / 48V 23Ah Lithium iron phosphate battery / 48V 46Ah
Power System Overall battery life / charging time 4 to 6 hours / 1 hour 8 to 10 hours / 1 hour
Security Configuration Number of LiDAR laser sensors 1 core radar + 2 auxiliary radars 1 Pepperl+Fuchs radar + 2 SICK radars
Security Configuration 3D Safety Obstacle Avoidance/Tray Recognition System Optional configuration Standard configuration
Compliance Certification International and industry compliance standard certification EMC, UN38.3 ISO 3691-4, CE, EMC, RED, UN38.3

Automated Guided Vehicle Forklift Contrast Points

SEER Robotics' autonomous navigation forklift is equipped with a powerful intelligent “robot brain” control system, which can carry out highly unified management of vehicle driving, visual recognition, and end actuators. Compared with the traditional forklift hardware assembled on the market, its internal communication delay is lower, the system stability is stronger, and it supports seamless access to the upper digital system of the enterprise. In addition, thanks to the mature laser SLAM algorithm, the product does not need to change the existing physical environment of the customer’s factory during deployment and does not need to lay magnetic strips on the ground or paste a large number of reflectors on the wall. Compared with traditional navigation for forklifts, the project landing cycle is shortened.

Automated Guided Vehicle Forklift
Bottleneck of Obstructed Narrow Road Intensive Handling
In view of the problems of narrow channels in dense storage and the inability of ordinary forklifts to stagger vehicles and turn over, SEER Robotics' narrow-body design allows equipment to turn smoothly within a very small radius and releases more storage space.
Identification error of special-shaped nonstandard carrier
In view of the problem that the fork taking fails due to the deviation of pallet placement or different specifications in the production line, we realize large-angle accurate identification and adaptive adjustment through AI vision to reduce manual intervention.
Chaotic scheduling across regions and multiple models
Aiming at the pain point that different brands and different models cannot work together during long-distance transportation in multiple workshops, unified scheduling is realized through system software to solve the problem of cross-plant and cross-process freight faults.

Automated Guided Vehicle Forklift Instructions

Quick map building and path planning
Use the matching one-stop implementation tool to control the forklift to drive in the factory area for a week; the equipment can automatically scan and build a large area of fine maps and then draw virtual sites and driving routes online.
01
Seamless docking of the upper management system
Through an open software interface, the unmanned forklift is connected to the warehouse management system or scheduling system of the enterprise to realize the automatic delivery of production orders and the closed-loop chain of multi-vehicle collaborative tasks.
02
Fully automatic intelligent charging setting
Mark the position of the automatic charging pile on the map and set the low power trigger threshold. When the forklift's power is lower than the set value, it will automatically go to the charging station to realize a 24-hour uninterrupted cycle operation.
03
Quick replacement of modular batteries
If continuous high-intensity operations are required, the operator can manually complete the quick extraction and replacement of modular dual batteries in a few minutes through a convenient mechanical structure at the side of the forklift to restore the full power state.
04

Automated Guided Vehicle Forklift For The Crowd

Automobile and parts manufacturing enterprises

It is suitable for large automobile assembly workshops and parts factories such as FAW-Volkswagen to solve the demand for long-distance automated transportation with high frequency and high safety requirements, such as intensive transportation of line-side materials and stamping handling.

3C electronics and semiconductor manufacturers

Suitable for Philips, Schneider Electric, and other electronic manufacturing plants with high space utilization requirements and strict cleanliness to meet the narrow channel high-frequency distribution between the online side warehouse and the dense three-dimensional library.

Third-party warehousing and traditional logistics giants

Suitable for transshipment centers of large integrated logistics enterprises such as Sinotrans, providing standardized unmanned handling for three-dimensional shelf storage, intensive stacking, and high-throughput inbound and outbound operations.

Automation system integrators and channel providers

Suitable for global system integrators focusing on the landing of industrial automation solutions, providing them with one-stop forklift hardware with complete CE certification, open hardware and software interfaces, and rapid secondary development.

Certificates And Factories

Certificates

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

SEER Certificates

FAQ

Q: How does this unmanned forklift perform in narrow aisles?
A: The domestic version of this series of unmanned forklifts has a body width of only 932 mm and a small turning radius. It is a standardized AGV forklift product specially developed for narrow aisle environments and can easily complete right-angle stacking and steering between line-side warehouses or shelves with very small gaps.
Q: If the pallet in the factory is not placed in a standard, can the forklift fork accurately and smoothly?
A: Yes. The forklift can be equipped with an optional or standard advanced pallet recognition system and visual AI algorithm with wide-angle and high-precision recognition capability. Even if the nine-legged pallet and non-standard material rack have certain placement deviations, the forklift can adaptively adjust its posture to accurately fork.
Q: How does the SEER Robotics unmanned forklift ensure the safety of man-machine mixed field operations?
A: The product is designed with a comprehensive safety protection mechanism, and the body is not only equipped with high-performance LiDAR to achieve a 360° full-field-of-view obstacle avoidance but also equipped with a 3D safety obstacle avoidance camera, safety touch edge, distance sensor, and strict hardware self-test system.
Q: Will the deployment of this system require modifications to our existing warehouse floors or walls?
A: No. The product uses advanced laser SLAM natural contour navigation technology; by scanning and positioning the characteristics of the surrounding environment, there is no need to lay magnetic strips and tracks on the ground, and there is no need to paste a large number of reflectors on the wall.
Q: Are compliance and safety certifications guaranteed for overseas project procurement of this product?
A: Yes, its compliance and safety certification are fully guaranteed. This series has specially launched the international EU CE version. The whole vehicle strictly meets the ISO 3691-4 international safety standard and has obtained EMC radio compatibility certification, RED directive certification, and battery UN38.3 safe transportation certification.
Q: How to solve the problem that the network signal is switched off during large-scale, long-distance transportation across the workshop?
A: The internal network communication module of the forklift supports a powerful industrial-grade Wi-Fi roaming function. When the forklift shuttles between different workshops and different router coverage areas, the network can achieve seamless switching in seconds to ensure that the real-time transmission of scheduling data is not interrupted.
