What navigation methods are supported by SEER Omnidirectional Stack 1000?

The advanced laser SLAM navigation technology is adopted, and the deployment is flexible and efficient without changing the customer’s on-site environment.

What is the rated load and standard increase of the robot?

Its rated load is 1000kg, and the standard increase reaches 1600mm, which meets the demand of heavy-duty stacking.

Automated Warehouse Robots

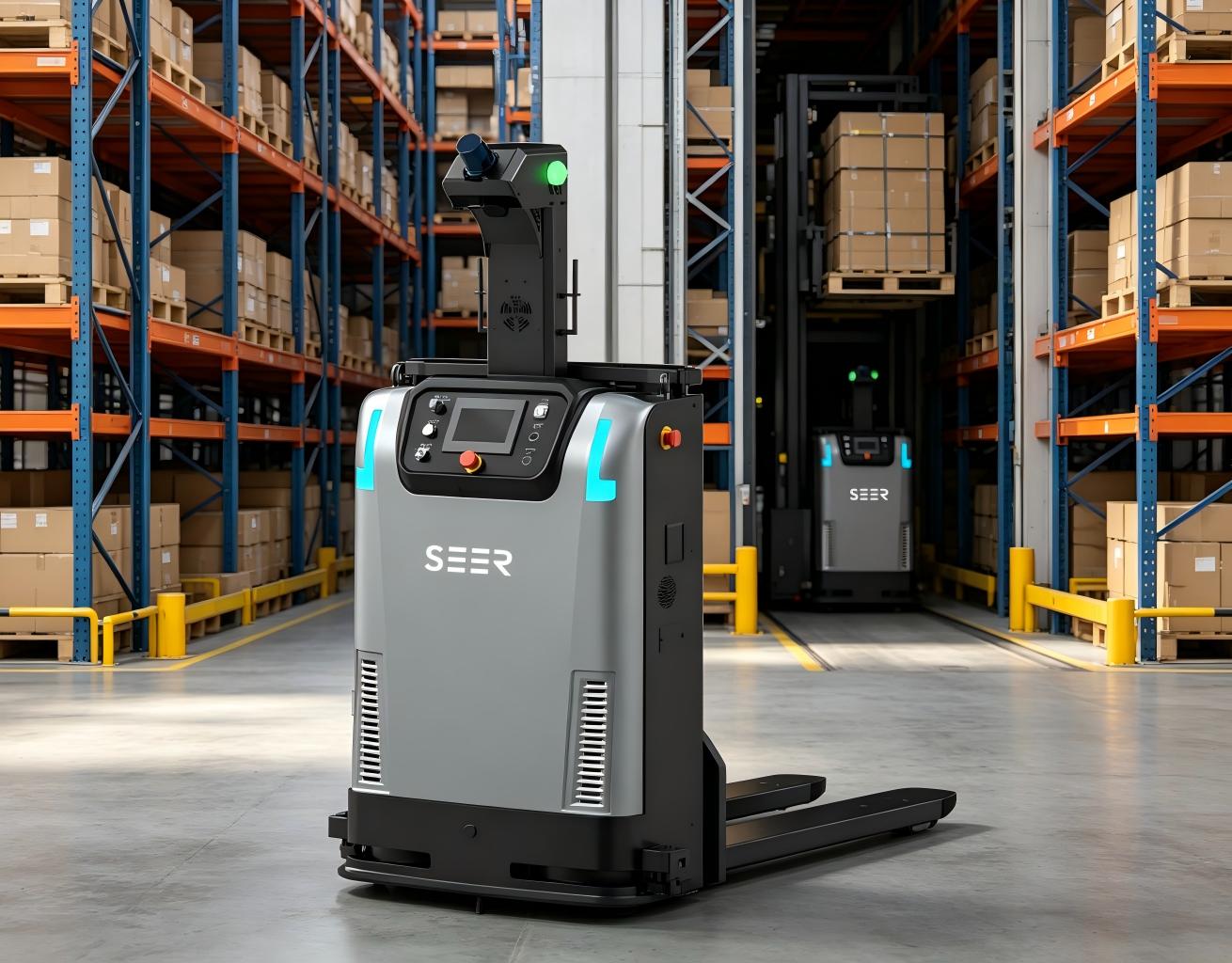

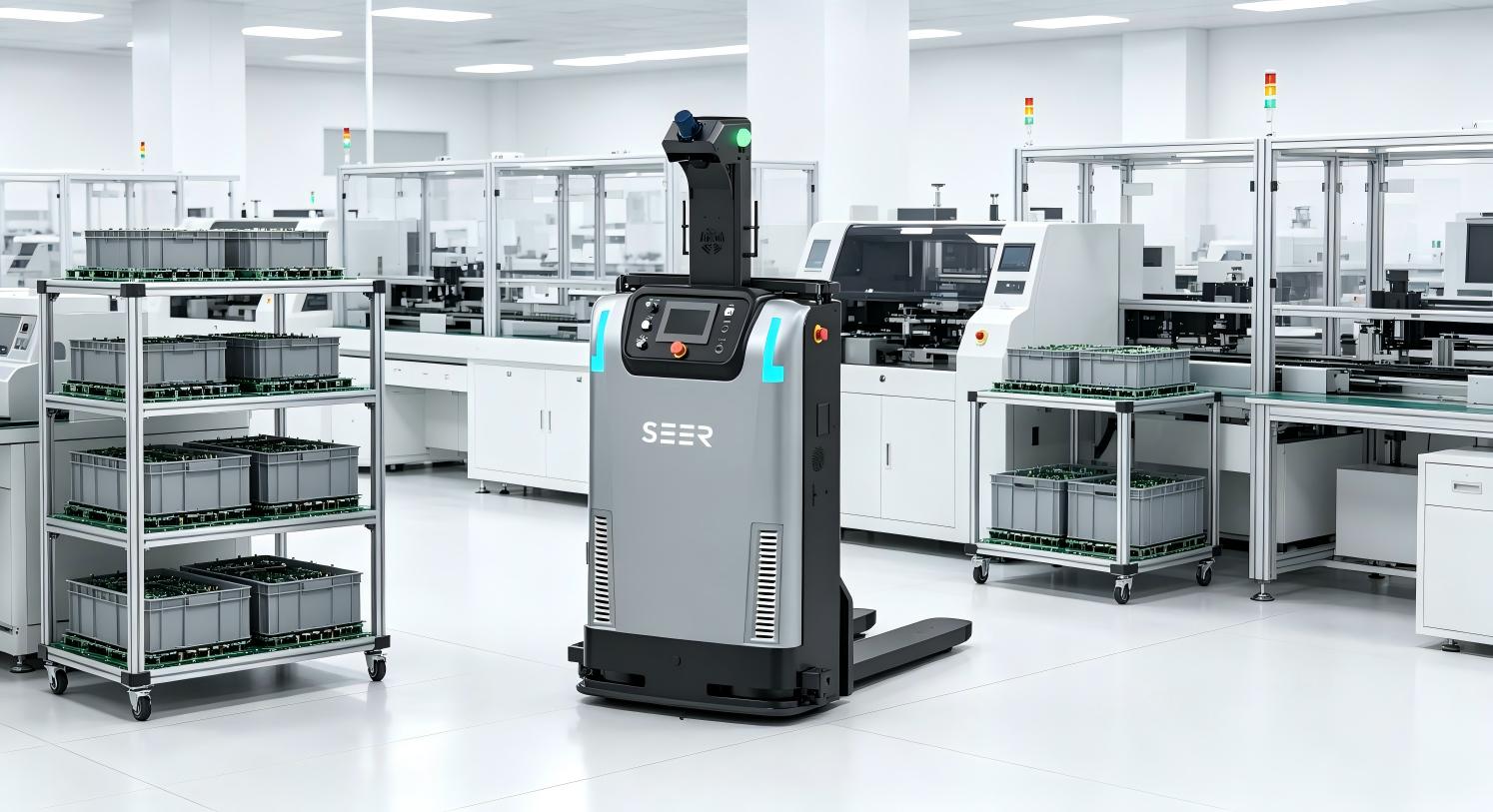

SEER Robotics offers the SEER Omnidirectional Stack 1000, equipped with 360-degree omnidirectional mobility, enabling efficient stacking and intelligent material handling in narrow aisles. As an original equipment manufacturer, SEER Robotics eliminates intermediaries and possesses globally leading core technology in robotic control systems, offering you highly competitive ex-factory prices and faster delivery times.

The SEER Omnidirectional Stack 1000 is primarily used in electronics manufacturing workshops, new-energy battery warehouses, automotive parts plants, and modern automated warehouse logistics centers.

Navigation method:

Laser SLAM navigation

Rated load:

1000 kg

Operating speed:

1.0 to 1.5 m/s

Automated Warehouse Robots' Features

360-degree omnidirectional movement capability:

Supports omnidirectional steering, can realize lateral movement in a 1.8-meter-wide narrow aisle, and can flexibly steer in a 1.9-meter narrow space, greatly improving the space utilization rate and operation efficiency of narrow areas.

Strong load capacity of 1 ton:

With a rated load capacity of 1000 kg and a standard increase of 1600 mm, it perfectly meets the requirements of automatic stacking and transportation of heavy pallets and goods.

Multi-dimensional and high-precision obstacle avoidance protection:

Equipped with 3D navigation. LiDAR, distance sensor, hardware self-diagnosis system, front 3D camera to realize small obstacle recognition, and front anti-collision bar to realize collision stop to ensure all-round operation safety.

Flexible and free path planning:

Supports flexible path planning of various motion types such as oblique trajectory, arc, lateral movement, detour, and advanced Bezier curves and adapts to complex and changeable industrial sites.

Efficient energy and charging system:

Equipped with a 51.2-volt lithium iron phosphate battery, the comprehensive battery is up to 10 to 12 hours, supporting 1-hour fast charging and manual and automatic dual charging modes.

Personalized customization and multi-choice configuration:

Supports deep customization of fork width, robot height, body color, and enterprise logo, which perfectly meets the unique business scenario requirements of different enterprises.

Automated Warehouse Robots
Compare Points

The SEER Omnidirectional Stack 1000 adopts a unique 360-degree omnidirectional movement design, which completely breaks the limitation that traditional stackers cannot move laterally in extremely narrow aisle and greatly improves the storage density of warehouses. SEER Robotics relies on a full-stack software and hardware ecological platform to deeply integrate multi-dimensional LiDAR protection, 3D cameras, and advanced laser SLAM navigation to ensure the safe operation of the robot with high precision and no blind spots in a narrow space.

To solve the problem of limited turning in narrow passages:

SEER Robotics realizes smooth traffic inside 1.8 m narrow passages through 360-degree omnidirectional steering technology in view of the pain points that traditional storage passages are too narrow to cause vehicles to turn around in and have low operation efficiency.

Eliminate the potential safety hazard of man-machine hybrid collision:

SEER Robotics realizes instant emergency stop protection. Robotics configuring 3D navigation, LiDAR, and a front anti-collision strip for the pain point of dense workshop personnel and equipment operation prone to visually blind collisions.

Resolve the difficulties of complex trajectory route planning:

SEER Robotics supports diversified and flexible path planning such as oblique trajectories, arcs, and Bezier curves for the pain points where the workshop line is staggered and the fixed path cannot adapt to the changeable layout.

Instructions For Using Automated Warehouse Robots

System initialization map construction:

Start the robot and perform laser SLAM scanning on the job warehouse through the implementation tool to quickly build a high-precision panoramic two-dimensional navigation map of the workshop.

01

Site and path configuration:

Set the charging pile position, shelf pick-up point, and delivery site in the background of the system, and plan the best running track, including lateral movement and Bezier curves.

02

Task delivery and omnidirectional scheduling:

Through the upper management system and scheduling platform docking, real-time delivery of stacking and handling instructions drives the robot to perform omnidirectional mobile operations.

03

Daily maintenance and inspection of equipment:

Regularly check the 3D navigation LiDAR lens, battery power, front anti-collision bar, and fork mechanical structure to ensure that the equipment is in good running condition.

04

Automated Warehouse Robots for People

New energy battery and lithium battery enterprises

Are suitable for new energy battery production and raw material storage enterprises to meet the battery modules and heavy pallets in narrow workshops and high-density three-dimensional warehouses with high-frequency automatic stacking and transfer.

Auto parts manufacturing enterprises:

It is suitable for auto parts processing and assembly factories to solve the problems of precise docking and omnidirectional flexible transportation of heavy-duty materials such as stamping parts and engines in dense workshops.

Electronic and electrical appliances and 3C manufacturing enterprises:

Suitable for 3C electronic products' precision parts storage and finished product shipping link to meet the multi-species, large quantities of materials in the limited space of rapid access needs.

Modern third-party logistics and warehousing enterprises:

Suitable for large-scale third-party logistics and e-commerce warehousing centers to solve the problems of automatic warehousing and efficient space utilization in massive SKU and high-density shelf areas.

Certificates And Factories

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

Technical indicators	Parameter details
Product Name	SEER Omnidirectional Stack 1000
Product Model	SOS-1000
Navigation type	Laser SLAM Navigation
Rated load	1000 kg
Load center distance	600 mm
Total weight	800 kg
Standards rise	1600 mm
Running speed	1.0 / 1.5 m/s
Positioning accuracy	±10 mm
Battery Specifications	51.2-volt 106-ampere-hour lithium iron phosphate battery
Battery life and charging	Battery life of 10 to 12 hours, charging time of 1 hour
