Pallet Stacking Robot Professional & Stable

Pallet Stacking Robot Professional & Stable

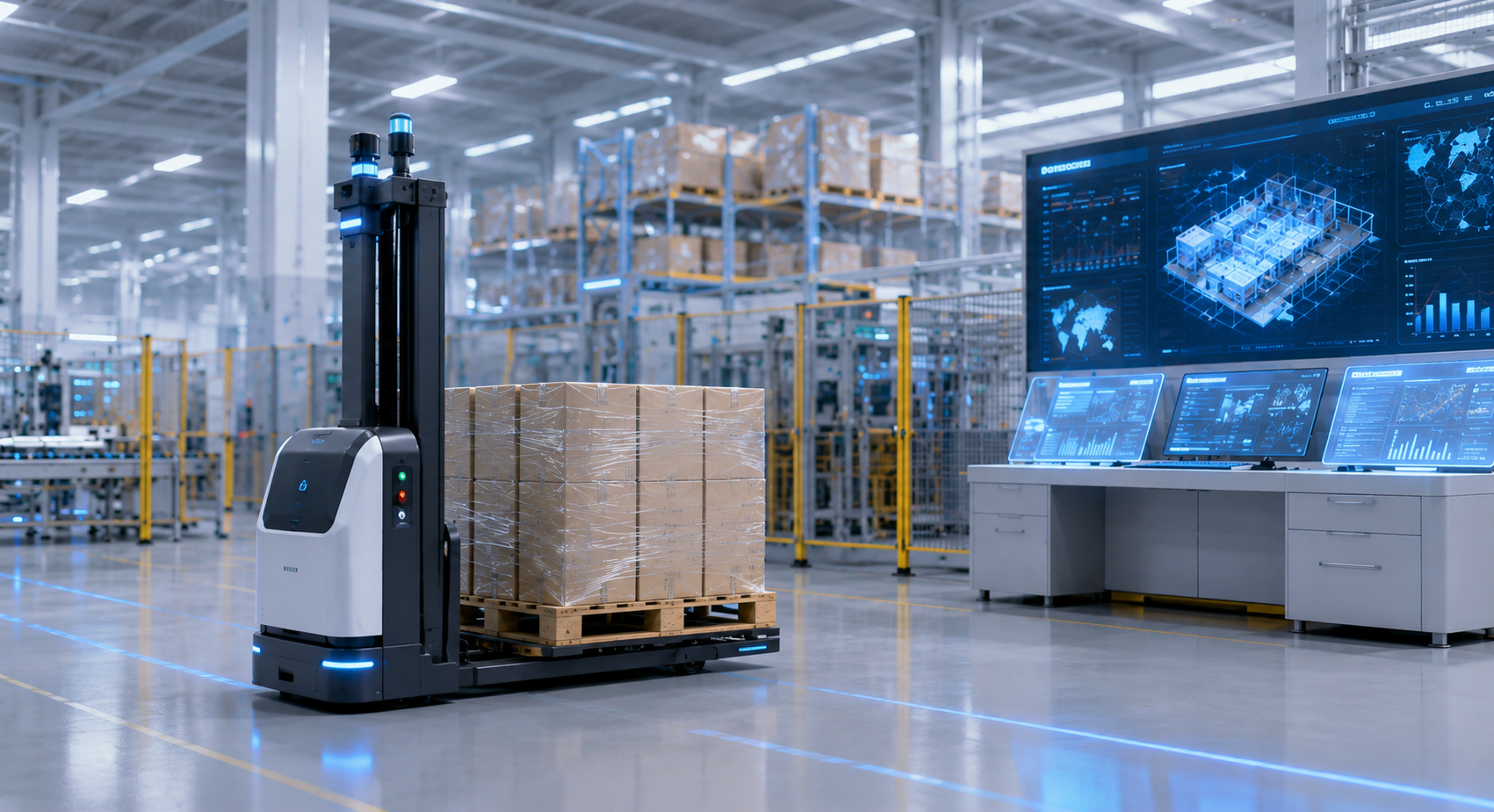

Pallet Stacking Robot

As the industry’s leading source manufacturer of intelligent logistics equipment, SEER Robotics independently developed the pallet stacking robot that integrates high-precision navigation and intelligent stacking, refuses middlemen to increase prices, and provides you with highly competitive ex-factory prices and faster overall delivery speed.

The pallet-stacking robot is mainly used in multi-layer shelf stacking, narrow-channel cargo storage, incoming and outgoing material operation, and efficient barge transportation in line and side warehouses.

Rated load
1.5T
Repeatability
± 10mm
Navigation Type
SLAM Navigation

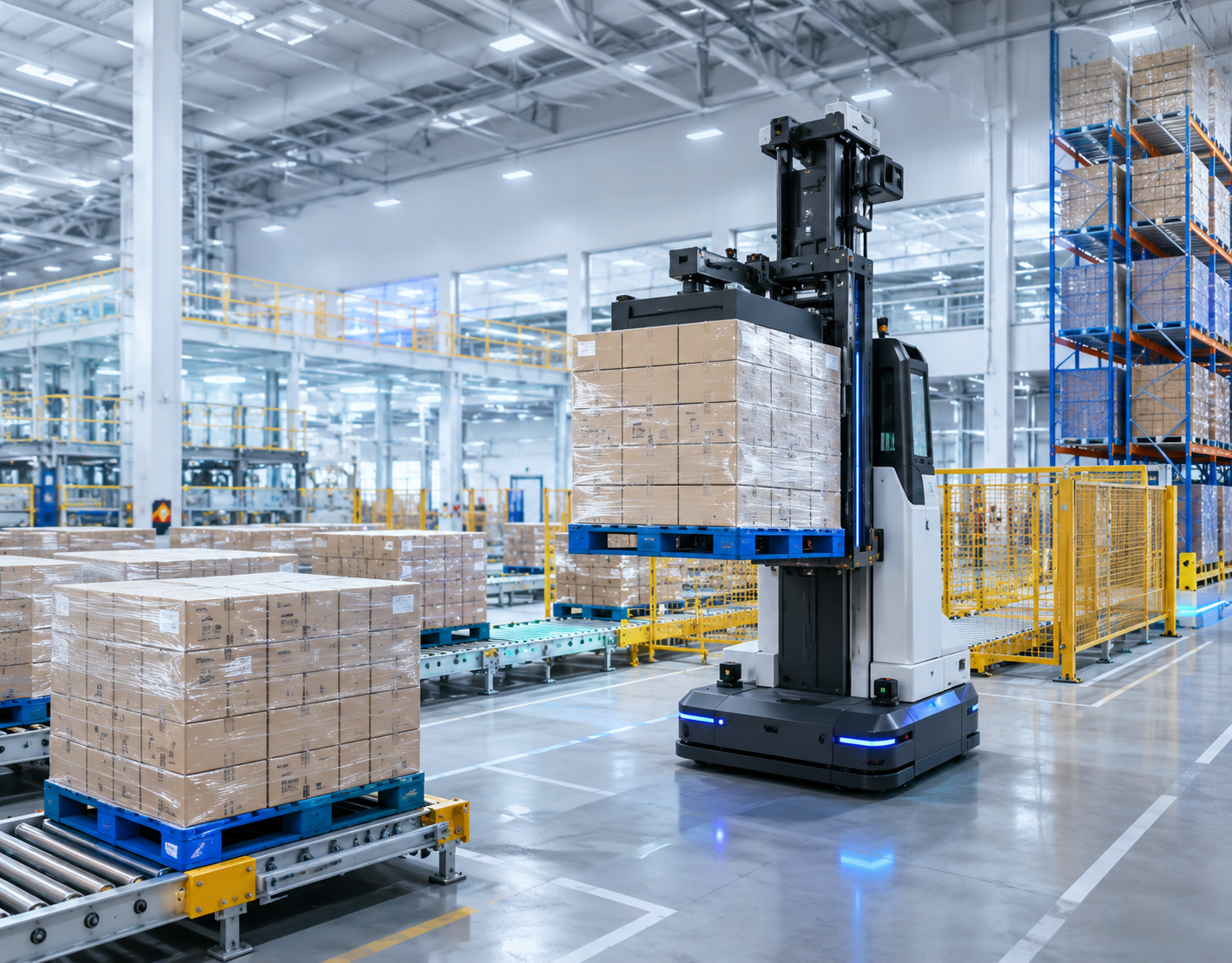

Pallet Stacking Robot

Pallet Stacking Robot Characteristics

Intelligent stacking identification
Through the AI of a deep learning algorithm, intelligent identification of a variety of specifications and colors of pallets and cages to achieve multi-angle high-precision adaptive docking to ensure stable and safe loading and unloading operations.
SLAM hybrid navigation
Supports multi-modal hybrid navigation such as laser SLAM and natural reflectors and achieves positioning accuracy of up to ± 10 mm in a dynamic and complex factory environment without excessive modification.
Flexible structure customization
Supports flexible customization of fork width, body color, logo, etc., perfectly matching the requirements of non-standard vehicles and special storage channels in various terminal factories.
360-degree safety protection
Equipped with safety LiDAR, obstacle avoidance radar, a 3D camera, a touch-edge strip, and other protective devices realize all-round three-dimensional safety detection and prevent collision accidents in the factory area.
Narrow Channel Extreme Passage
The design of a small turning radius allows robots to easily shuttle in extremely dense storage space, maximizing the volume ratio of terminal manufacturing and storage.
Integrated hardware and software scheduling
Seamlessly integrate RDS cluster management system to realize unified route scheduling and traffic control for multiple vehicles, greatly improving the overall efficiency of multi-vehicle cross-operation in the plant.
Pallet Stacking Robot Structured Detailed Parameter Table
Parameter name Specifications
Product Name Intelligent pallet stacking robot
Core Controller SEER Robotics SRC Series Core Controller
Rated load capacity 1.5T
Positioning and navigation accuracy ±10mm
Navigation-aware configuration Navigation LiDAR, 3D camera, obstacle avoidance radar
Operating speed 2m/s
Compatible vehicle types Pallets, racks, and material cages
The scheduling system supports RDS system, M4 system

Pallet Stacking Robot Comparison
Points

Traditional heap height equipment often relies on manual operation or fixed magnetic stripe navigation, which is very easy to fail in the dynamic and changeable terminal manufacturing workshop. The pallet-stacking robot developed by SEER Robotics is based on the SRC core controller, which realizes the unified integration management of hand, eye, and body and has excellent 3D visual perception and complex scene adaptability. This product can be deeply coordinated with the RDS cluster management system and M4 intelligent logistics management system developed by SEER Robotics. It can not only independently complete the accurate transportation of goods but also realize the efficient connection of software and hardware in the factory and build a fully automated intelligent factory for customers.

Pallet Stacking Robot
The positioning offset of the traditional carrier leads to the failure of the forked goods
the pallet and the material cage are intelligently identified by AI deep learning to realize multi-angle high-precision adaptive adjustment and avoid the inability to load and unload due to manual placement skew.
The narrow and dense passage leads to the difficulty of heavy-duty steering
the compact chassis structure and the design of an extremely small turning radius enable the equipment to pass smoothly between the densely arranged, dense storage shelves.
Multi-vehicle mixed running leads to logistics and traffic paralysis
through a powerful cluster scheduling algorithm, unified path planning and mutually exclusive control with cross-regional and multi-category robots are realized, and traffic jams are completely eliminated.

Pallet Stacking Robot Instructions

Environmental mapping and site deployment
use Roboshop integrated implementation tools to control equipment for environmental scanning, quickly build 2D or 3D high-precision maps of the plant area, and configure connection points in the maps.
01
Material carrier model editing
quickly complete the feature model editing of pallets, material cages, and other carriers through visualization software so that the system can accurately identify the physical attributes of target goods online.
02
Task assignment and cluster scheduling
relying on the RDS system or M4 management system, seamlessly docking with the enterprise MES system through an intuitive interactive interface to remotely issue automatic picking or stacking tasks to equipment.
03
Status monitoring and intelligent maintenance
real-time monitoring of equipment running track and remaining power through the data billboard; when abnormal or insufficient power, the system will trigger an automatic alarm or autonomous charging.
04

Pallet Stacking Robot For People

3C Electronics and Semiconductor Manufacturing Enterprises

For factories with a large number of parts and high precision, pallet stacking robots can efficiently complete the automatic high-precision transportation of materials in line-side warehouses.

3C Electronics
Automotive and industrial equipment parts enterprises

In the face of heavy loads of large and complex material storage environments, robots supporting large-tonnage pallets with fine stacking height can significantly alleviate the pressure of manual work.

Automotive
New energy and photovoltaic manufacturers

Suitable for large-scale, continuous production workshops; complete large quantities of raw materials into the warehouse and finished products with fully automatic multi-layer shelf stacking.

New Energy
Large-scale free trade port and warehouse logistics center

To solve the pain point of mass order goods turnover under high-density storage, through seamless connection with the warehouse and scheduling system, greatly improve the accuracy of incoming and outgoing storage.

Logistics Center

Certificates And Factories

Certificates

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

Factory

FAQ

Q1: How does the pallet stacking robot ensure fork security in complex environments?
A1: The robot is equipped with high-precision navigation. LiDAR, a 3D obstacle avoidance camera, a touch-edge strip, and safety radar, which can realize 360-degree three-dimensional safety perception without dead corners and will automatically slow down or stop when encountering obstacles.
Q2: If the pallet is skewed in the factory, can the robot normally identify and fork it?
A2: Yes. The robot has an AI of deep learning algorithms and adaptive recognition technology, which can accurately identify multi-specification, multi-color pallets or cages and adjust the forks adaptively according to the actual posture.
Q3: For intensive warehousing with narrow channels, can equipment pass smoothly?
A3: This series of robots adopts a highly integrated compact body design with a very small turning radius. It is specially optimized for narrow passages and dense shelf environments to realize worry-free shuttling.
Q4: There are many different types of robots on the production site. How do you achieve unified management?
A4: The robot has a built-in powerful core controller, which can seamlessly access the RDS cluster management system developed by SEER Robotics and supports multi-vehicle and multi-device unified path scheduling and traffic mutual exclusion control.
Q5: Does the fork width and body identification of the robot support customization according to the enterprise’s non-standard vehicle?
A5: Support. We provide flexible customization solutions, including fork width, lifting height, full vehicle color and enterprise logo, etc., which can meet the differentiated needs of various terminal factories.
Q6: What is the battery life? Does it support fast charging or automatic charging?
A6: The robot is equipped with a large-capacity industrial power battery and supports automatic charging. When the system detects that the power is lower than the set threshold, it will automatically dispatch the equipment to the charging station to ensure 24-hour uninterrupted operation.
