Warehouse Robot Automation

Warehouse Robot Automation Premium Quality Guaranteed

Warehouse Robot Automation

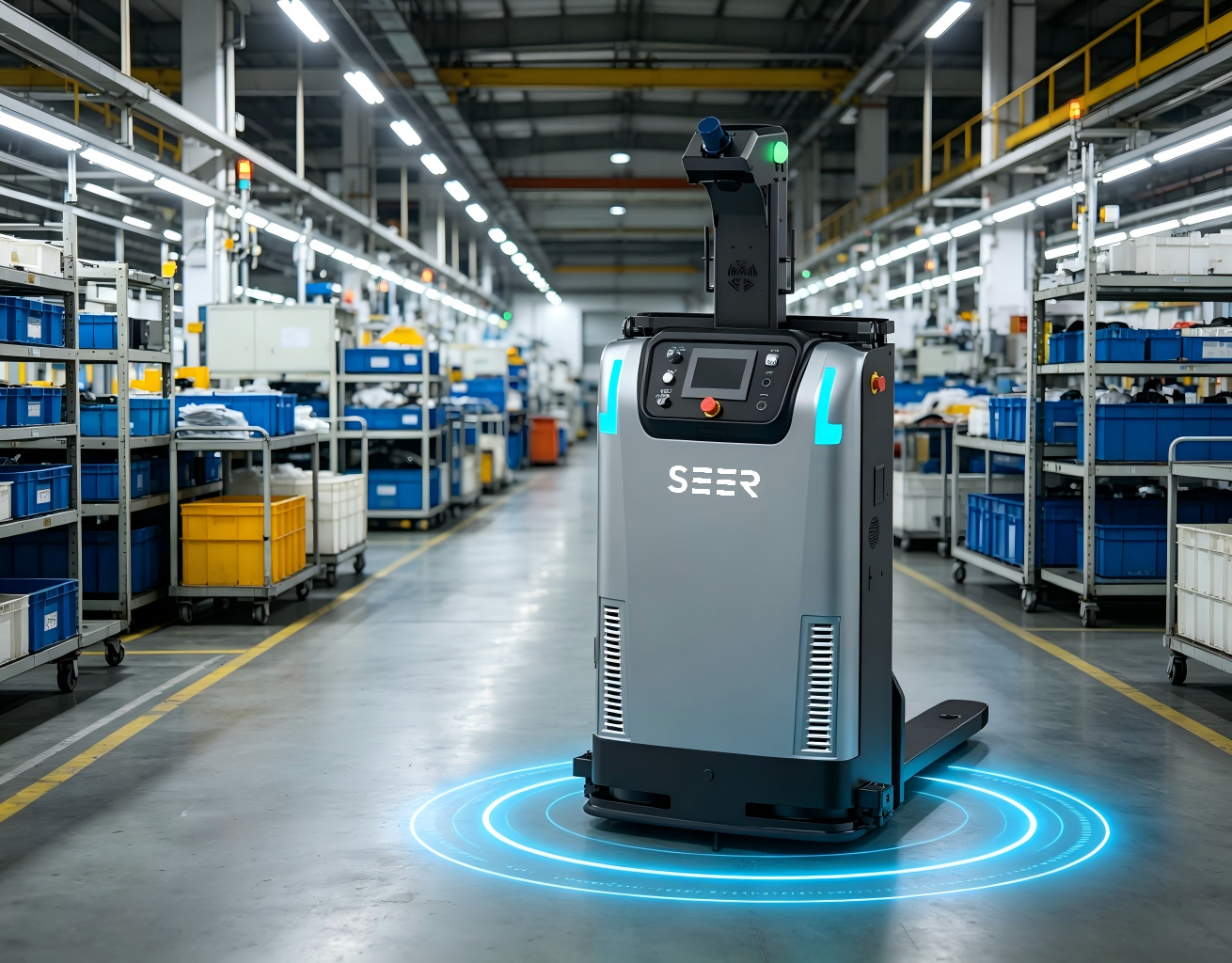

The SEER Omnidirectional Stack 1000 is an omnidirectional stacker robot, featuring 360-degree omnidirectional mobility and a 1-ton rated load capacity, specifically designed for efficient warehousing in narrow aisles. SEER Robotics is an original equipment manufacturer that independently develops and produces its products, eliminating intermediaries and their markups while offering factory‑guaranteed quality and rapid delivery.

It is primarily used to automate and upgrade operations in automotive manufacturing, 3C electronics assembly, semiconductor cleanrooms, and narrow-aisle warehousing and logistics.

Rated load
1000 kg
Navigation type
Laser SLAM
Traveling speed
1.5 m/s

Warehouse Robot Automation Features

360-degree omnidirectional flexible walking
Equipped with an omnidirectional steering system, supporting lateral translation and extremely small radius steering, and allowing free passage in 1.8-meter narrow lanes, greatly improving warehouse space utilization and operation efficiency.
Millimeter-level high-precision positioning
Laser SLAM navigation technology is adopted, and the repeated positioning accuracy reaches plus or minus 10 mm, ensuring accurate docking when picking and placing pallets at high positions in the compact shelf, thus avoiding collision and damage to goods.
Three-dimensional LiDAR obstacle avoidance
Equipped with high-precision 3D navigation LiDAR, a safety contact edge, and an optional front 3D camera to detect ground potholes and small obstacles, achieving all-around three-dimensional security protection.
Smooth curve flexible path planning
Supports oblique, arc, horizontal, cubic Bezier curves, and other motion trajectory planning; in a complex and dense environment, it automatically selects the optimal route, running more smoothly.
Fast and efficient charging and long battery life
Equipped with a large-capacity lithium iron phosphate battery, providing continuous working time of up to 10h to 12h and supporting 1h fast automatic charging, ensuring continuous operation day and night in the plant.
Highly customized adaptation to multiple scenarios
Supports customization of fork width, body height, appearance color, and logo and seamlessly adapts to the personalized storage automation requirements of various open pallets and customers in different industries.
Warehouse Robot Automation Detailed Parameter Table
Parameter categories Detailed parameters Parameter values ​​and specifications
Basic parameters Product Model SOS-1000
Navigation methods Laser SLAM Navigation
Tray type Open pallet
Rated load 1000 kg
Load center distance 600 mm
Weight (including battery) 800 kg
Standard lifting height 1600 mm
Body size 1742 x 1018 x 2001 mm
Fork size 1220 x 210 x 60 mm
Fork outer width 620 mm or 680 mm
Minimum turning radius 1445 mm
Performance parameters Operating speed (full load/no load) 1.0 m/s / 1.5 m/s
Navigation and positioning accuracy ±10 mm
Navigation angle accuracy ±1°
Climbing/Stepping/Crossing ability <5% / 10 mm / 30 mm
Battery and charging Battery Specifications 51.2 V / 106 Ah (Lithium iron phosphate battery)
Combined battery life 10 h to 12 h
Fast charging time 1 hour (charging from 10% to 80%)
Charging method Manual charging or automatic charging
Security and Configuration Security Configuration 360-degree Laser protection, collision-resistant edge, emergency stop button, and audible and visual indicator lights.
LiDAR Configuration 1 SLM-SLE4248 and 3 SLD40
Visual and Extended Functionality 3D obstacle avoidance, tray recognition, and network roaming

Warehouse Robot Automation
Contrast Points

The warehouse robot automation device launched by SEER Robotics breaks through the physical limit of turning radius required by traditional forklifts with its unique omni-directional mobile chassis architecture. Compared with similar one-way or two-way stacking height equipment, it can directly translate and stack horizontally in a very narrow channel of 1.8 metres, thus significantly improving the utilisation efficiency of storage space. As an original equipment manufacturer, SEER Robotics has deeply integrated its own Laser SLAM algorithm and control system. The vehicle integrates multiple high-precision LiDAR and three-dimensional visual sensing units, which can realise real-time obstacle avoidance and high-precision positioning in milliseconds in complex environments without laying two-dimensional codes or magnetic strips on the ground, thus reducing the initial laying and later maintenance costs of the enterprise.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Restricted access to very narrow passages
Traditional forklifts have difficulty turning in passages less than two metres. The omnidirectional translation function allows the robot to directly enter and exit sideways without turning, completely solving the problem of insufficient space in narrow channels.
High pallet docking deviation
Manual or ordinary equipment is prone to visual blind spots when stacking at high positions. A built-in pallet recognition algorithm and Laser positioning system achieve millimetre-level alignment, eliminating safety hazards and cargo damage.
Multi-device same-field scheduling deadlock
Multiple robots are prone to stagnation and blockage when they meet in dense storage areas. Relying on advanced path planning and a Bezier curve obstacle avoidance algorithm, dynamic avoidance and smooth passage are realised.

Warehouse Robot Automation Instructions

Map building and route deployment
Turn on the equipment and use visualisation software to Laser scan and build maps of the warehouse environment, drawing job routes and docking stations on the map.
01
Vehicle and parameter verification
Set the fork lifting height and pallet identification parameters, test the lateral translation and turning trajectory, and ensure that the safe obstacle avoidance parameters are set.
02
System docking and simulation
The equipment is connected to the host scheduling system, and the simulated handling test under no-goods and full-load conditions is carried out to confirm the smooth wireless roaming communication.
03
Automatic distribution and operation
With a one-click delivery task on the management platform, the robot will automatically carry out picking, horizontal shuttling, high stacking and automatic charging.
04

Warehouse Robot Automation For People

Automobile and parts manufacturing plant management personnel

Designed for automobile production workshops with many types of parts and frequent handling needs. The equipment can shuttle freely in narrow sideline warehouses, realising accurate and rapid distribution of sideline materials, significantly matching the production line pace and reducing site congestion.

3C Electronics and Semiconductor Enterprise Logistics Leader

Designed for electronic manufacturing environments with high cleanliness requirements and compact storage channels. The omni-directional stacking robot seamlessly connects automatic shelves and production lines to provide pollution-free and high-precision handling services and accelerate the turnover of semi-finished products.

Director of a flat warehouse and third-party logistics operations

Suitable for logistics centres with high storage density and high pallet turnover. By realising efficient stacking and lateral movement in narrow lanes, the storage utilisation rate and storage efficiency are improved without expanding the plant.

Machinery manufacturing and heavy equipment warehouse manager

For heavy parts and complex storage environments of the manufacturing workshop. It has a load capacity of 1 tonne and all-round LiDAR safety protection to ensure the safe and stable loading and unloading of materials in the dense man-machine mixed-operation area.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

How does the SEER Omnidirectional Stack 1000 perform stacking in an ultra-narrow aisle just 1.8 meters wide?
Equipped with a 360-degree omnidirectional steering system, it supports lateral shifting and diagonal movement, eliminating the need for the large turning space required by conventional forklifts. It can directly approach the racking laterally within the narrow aisle and complete stacking.
Does the equipment’s Laser SLAM navigation require any modifications to the existing warehouse floor?
No, it does not. Laser SLAM navigation is a natural-feature‑based approach that uses an onboard LiDAR sensor to construct a digital map of the environment, eliminating the need to install magnetic strips, reflectors, or QR codes on the floor and leaving the existing warehouse flooring entirely intact.
How does this stacker robot perform in terms of battery life and charging?
The device is equipped with a high-capacity lithium iron phosphate battery, offering an endurance of 10 to 12 hours under typical operating conditions. Supports automatic charging mode, boosting the battery from 10% to 80% in just 1 hour, ensuring efficient continuous operation.
What are the system’s Laser-based obstacle avoidance and safety‑protection configurations?
The vehicle is equipped with multiple LiDAR sensors, edge‑contact collision detection, an emergency‑stop button, and 3D obstacle‑avoidance cameras, enabling all‑round, three‑dimensional protection. When personnel or obstacles are detected, the vehicle automatically brakes to a stop or replans its path.
Does the device support customised recognition of pallets and shelving?
Yes, it does. The device features a built-in tray‑recognition algorithm that accurately identifies the position and orientation of open‑type trays and can be extended to support high‑level racking tray recognition and in‑rack stacking.
Can the vehicle’s colour, company logo, or fork dimensions be customised?
Yes, they can. As an original equipment manufacturer, SEER Robotics offers highly flexible customisation services, with options for fork spread, vehicle height, paint colour, and branding—all tailored to your specific requirements.
