Warehouse Robotic Automation

Warehouse Robotic Automation Advanced Technology

Warehouse Robotic Automation

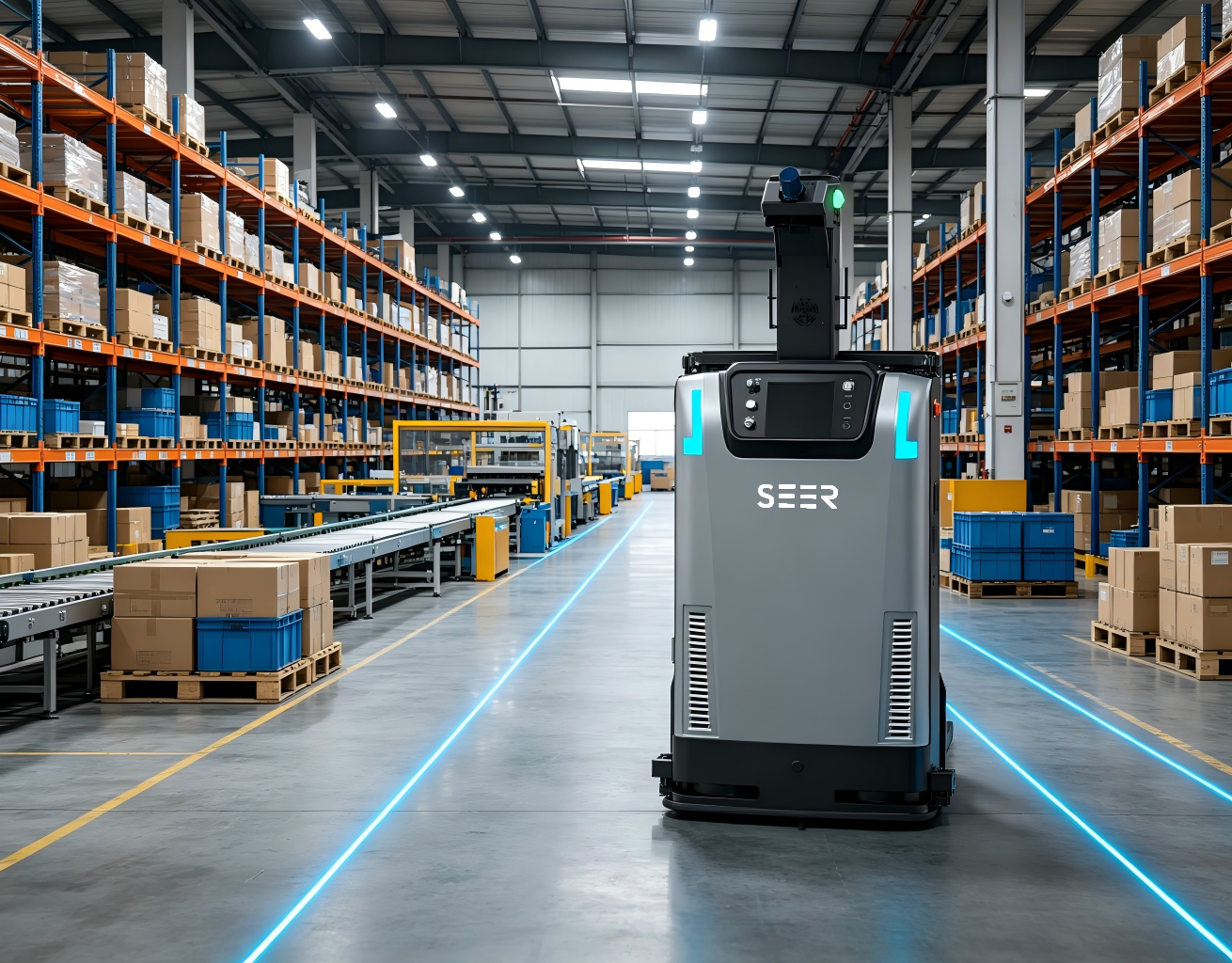

SEER Omnidirectional Stack 1000 is a core piece of warehouse robotic automation equipment with 360-degree omnidirectional mobility. SEER Robotics is an original equipment manufacturer that eliminates intermediaries, offering you highly competitive factory‑direct pricing and prompt delivery.

This warehouse robotic automation product is primarily used for narrow-aisle dense storage, automated line-side logistics, high-level racking pallet storage and retrieval, and material handling in complex spatial environments.

Navigation type:
Laser SLAM
Rated load:
1000 kg
Maximum speed:
1.5 m/s

Warehouse Robotic Automation Features

Omnidirectional movement improves space utilization:
As the core equipment of warehouse robotic automation, it supports 360-degree steering and lateral movement and can flexibly operate in 1.8 m narrow channels to improve storage density.
High-precision 3D obstacle avoidance ensures safety:
Standard 3D navigation LiDAR and distance sensors can identify very small obstacles and realize pothole detection, ensuring that the warehouse robotic automation system runs worry-free.
One-hour fast charging meets continuous operation:
It is equipped with a lithium iron phosphate battery, and most of the power can be recovered after one hour of charging, meeting the demand of all-weather, high-intensity operation of warehouse robotic automation.
Flexible path planning improves traffic efficiency:
It supports a variety of advanced trajectory planning methods, such as diagonals, arcs, and Bezier curves, effectively resolving congestion problems in complex scenarios of warehouse robotic automation.
Millimeter-level positioning ensures accurate docking:
The positioning accuracy of laser trackless navigation reaches ± 10 mm, ensuring seamless and accurate docking of pallets and shelves in the warehouse's robotic automation process.
High modularity supports deep customization:
It supports customized design of fork width, body height, and color, which perfectly fits the exclusive warehouse robotic automation business scenarios of different enterprises.
Warehouse Robotics Automation Structured Detailed Parameter Table
Parameter categories Parameter name Technical indicators
Basic performance Navigation type Laser SLAM Natural Navigation
Basic performance Rated load 1000 kg
Basic performance Standard lifting height 1600 mm
Motion control Driving speed: Full load and empty load 1.0 m/s and 1.5 m/s
Motion control Minimum turning radius 1445 mm
Motion control Navigation and positioning accuracy ±10 mm
Physical dimensions Vehicle body dimensions 1742x1018x2001 mm
Physical dimensions Fork outer width 620 mm or 680 mm
Battery and battery life Battery Specifications 51.2 V and 106 Ah lithium iron phosphate
Battery and battery life Overall operating time 10 to 12 hours
Security Configuration Obstacle avoidance and protection system 360-degree LiDAR protection and anti-collision strips

Warehouse Robotic Automation
Contrast Point

In the process of advancing warehouse robotic automation, traditional automated forklifts are often limited by their large bodies and single motion patterns, and cannot perform optimally in dense storage. The SEER Omnidirectional Stack 1000 provided by SEER Robotics has 360-degree omnidirectional driving capability and can move horizontally in extremely narrow channels, completely breaking through the physical space limitation of traditional equipment and releasing great storage potential for you. In addition, SEER Robotics warehouse robotic automation platform uses pure laser SLAM navigation, combining 3D LiDAR with multi-dimensional sensors, compared to conventional solutions that generally require complex ground modifications in the industry. This not only greatly shortens the on-site deployment cycle, but also demonstrates an unparalleled level of safety protection and environmental adaptability in a complex and changeable human-machine mixed environment.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Overcome the problem of narrow channel space waste:
Completely break through the traditional forklift limit; omnidirectional mobile capacity significantly improves the three-dimensional storage density of storage facilities.
Eliminate the hidden danger of multi-modal safety blind area:
Integrate three-dimensional LiDAR intelligent obstacle avoidance to effectively prevent the collision rollover risk caused by low obstacles and potholes.
Reduce heavy charging and maintenance costs:
The introduction of fast charging technology and long-life lithium batteries solves the pain points of traditional lead-acid batteries, such as high maintenance frequency and slow charging.

Warehouse Robotic Automation Instructions

Map scanning and route setting:
Control the equipment to traverse the warehouse, the system automatically generates a three-dimensional map, and plans the exclusive omnidirectional traverse trajectory of the warehouse robotic automation.
01
Pallet identification and parameter calibration:
Configure the pallet size and shelf height through software, turn on the intelligent visual identification function, and ensure accurate high-position insertion operation.
02
Delineation of safety protection area:
Set speed limit area and forbidden area in the system interface, adjust LiDAR detection range, and ensure the absolute safety of human-machine cooperation environment.
03
Task distribution and automatic operation:
Docking with the enterprise management system to issue handling instructions, equipment independently calculate the optimal curve path to execute tasks and complete automatic power supply.
04

Warehouse Robotic Automation Applicable Crowd

Director of Auto Parts Manufacturing Supply Chain:

Aiming at the pain points of many kinds of parts and narrow line-side space, the warehouse robotic automation products can shuttle flexibly in all directions and realize high-frequency and accurate distribution of production line materials.

Person in charge of third-party logistics and contract warehousing:

In the face of frequent changes in warehousing layout, the warehouse robotic automation scheme of pure laser trackless navigation does not need to transform the site, which greatly improves the business response speed.

Pan-Semiconductor and Electronics Manufacturing Factory Director:

For high-value and fragile electronic components, the warehouse robotic automation equipment to provide millimeter-level smooth docking and multiple anti-collision protection to ensure zero cargo damage.

Decision makers in pharmaceutical circulation and cold chain storage:

To meet the access needs of high-density three-dimensional storage, this warehouse robotic automation equipment supports high-level pallet identification and narrow-channel pick-up, effectively increasing storage capacity and ensuring compliance.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

Q: What is the minimum requirement for channel width in warehouse robotic automation for SEER Omnidirectional Stack 1000?
A: With its 360-degree omni-directional steering and lateral movement functions, it can smoothly shuttle horizontally in extremely narrow channels as low as 1.8 meters.
Q: How does the battery life of this warehouse robotic automation device perform?
A: It can run continuously and stably for 10 to 12 hours under full power, and is equipped with a one-hour fast charging function to ensure the high attendance rate of the equipment.
Q: How does this equipment ensure safe operation in a complex factory environment?
A: The device comes standard with three-dimensional navigation LiDAR, distance sensor and anti-collision touch edge, which can realize accurate detection of potholes and active avoidance of small obstacles.
Q: Does the warehouse robotic automation system need to transform the existing ground of the warehouse?
A: No, the equipment uses laser SLAM trackless navigation algorithm, no need to mount two-dimensional code or lay magnetic stripe, greatly reducing the initial deployment cost.
Q: How much accuracy can the automatic pallet docking of the equipment achieve?
A: The navigation and positioning accuracy of the system can reach plus or minus 10mm, and it is equipped with visual pallet identification technology to ensure that every lifting and storage of goods are absolutely accurate.
Q: Does SEER Robotics support deep customization of this device?
A: Fully supported, you can customize the fork width, body height and exclusive painting color of the robot according to specific business scenarios.
