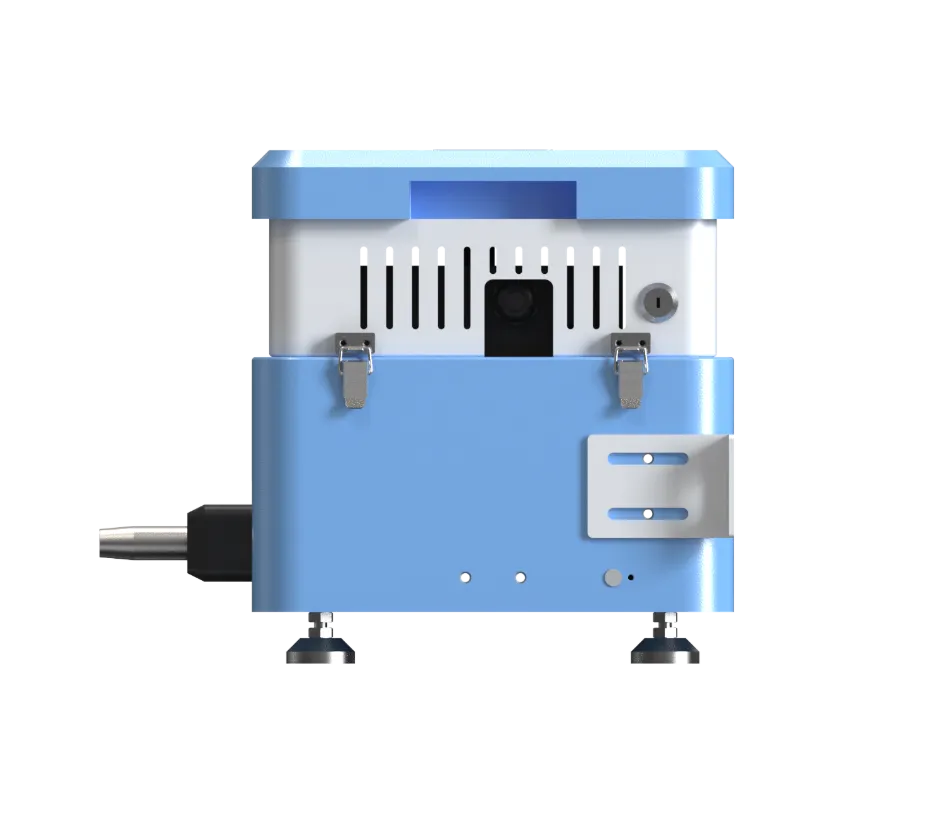

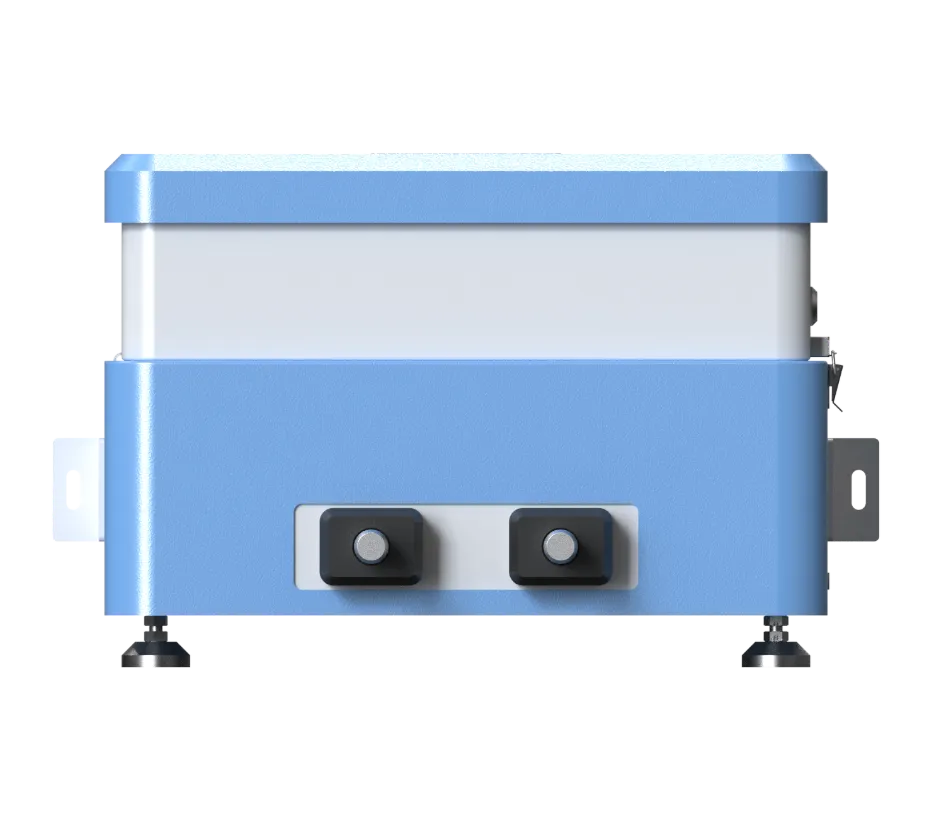

Automatic Charging Based on Robots from SEER Robotics
Supports Manual Charging
New Industrial Design
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Product Parameters
50 / 60
Input Frequency (Hz)50 / 60
Input Frequency (Hz)50 / 60
Input Frequency (Hz)
48
DC Output Voltage (V)48
DC Output Voltage (V)48
DC Output Voltage (V)
25
DC Output Current (A)25
DC Output Current (A)25
DC Output Current (A)
IP20
IP RatingIP20
IP RatingIP20
IP Rating54.6±0.2
Maximum Output Voltage (V)54.6±0.2
Maximum Output Voltage (V)54.6±0.2
Maximum Output Voltage (V)● Standard ○ Optional - None
| Product model |
|---|

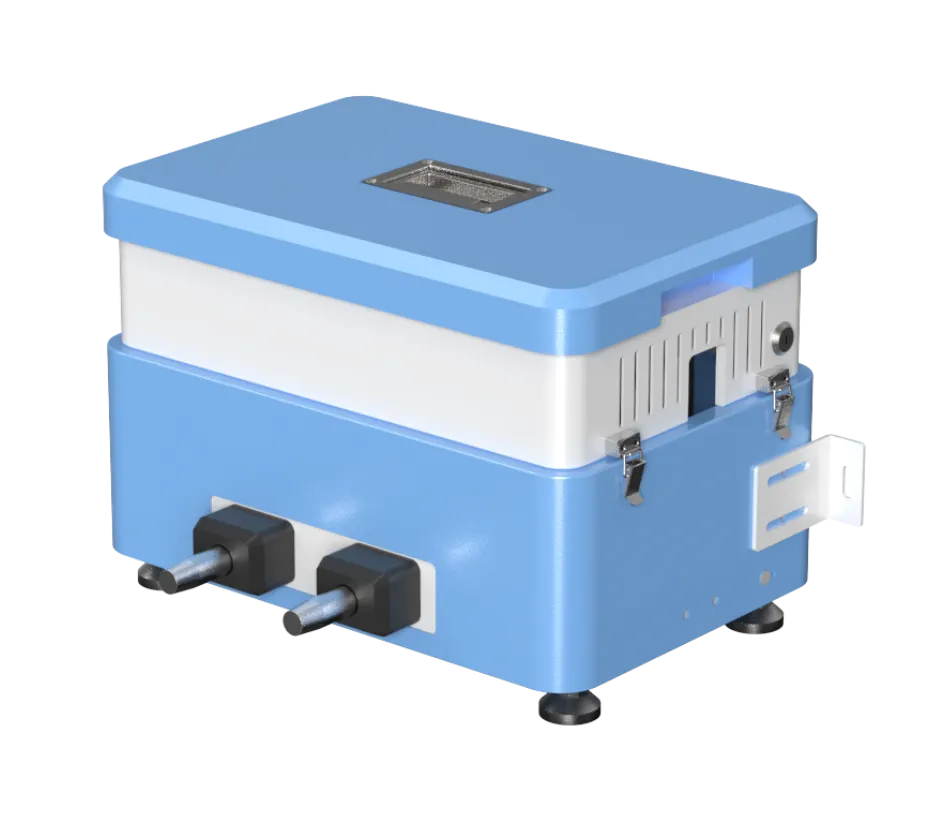

SCS-2502 |
| Product name |
|---|
Robotic Automatic Charging Station |
| L x W x H |
|---|
480 x 368.5 x 298.5 mm |
| AC input voltage |
|---|
220 V |
| Input frequency |
|---|
50 / 60 Hz |
| DC output voltage |
|---|
48 V |
| Maximum output voltage |
|---|
54.6±0.2 V |
| DC output current |
|---|
25 A |
| Maximum output current |
|---|
25±5% A |
| Maximum output power |
|---|
1500 W |
| Weight |
|---|
20 kg |
| Connector for manual charging |
|---|
LP24-4P |
| Plug specification |
|---|
GB 10A |
| Suitable product model |
|---|
SJV series (new, 25 A) |
Note: The actual product name shall be based on the nameplate.
