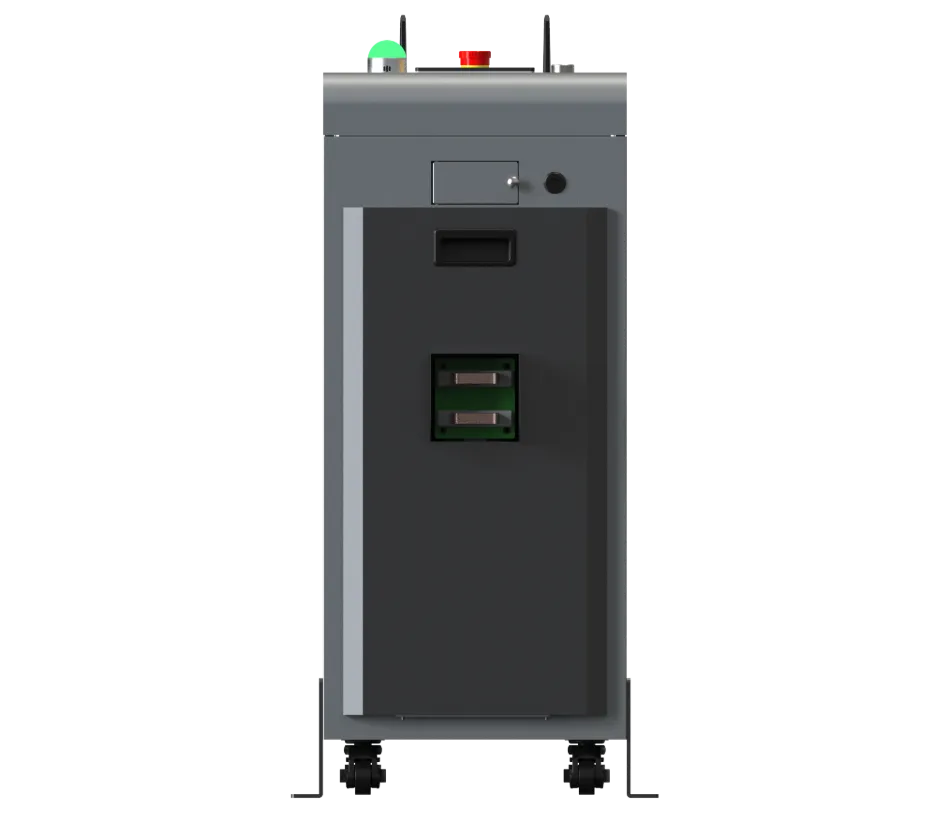

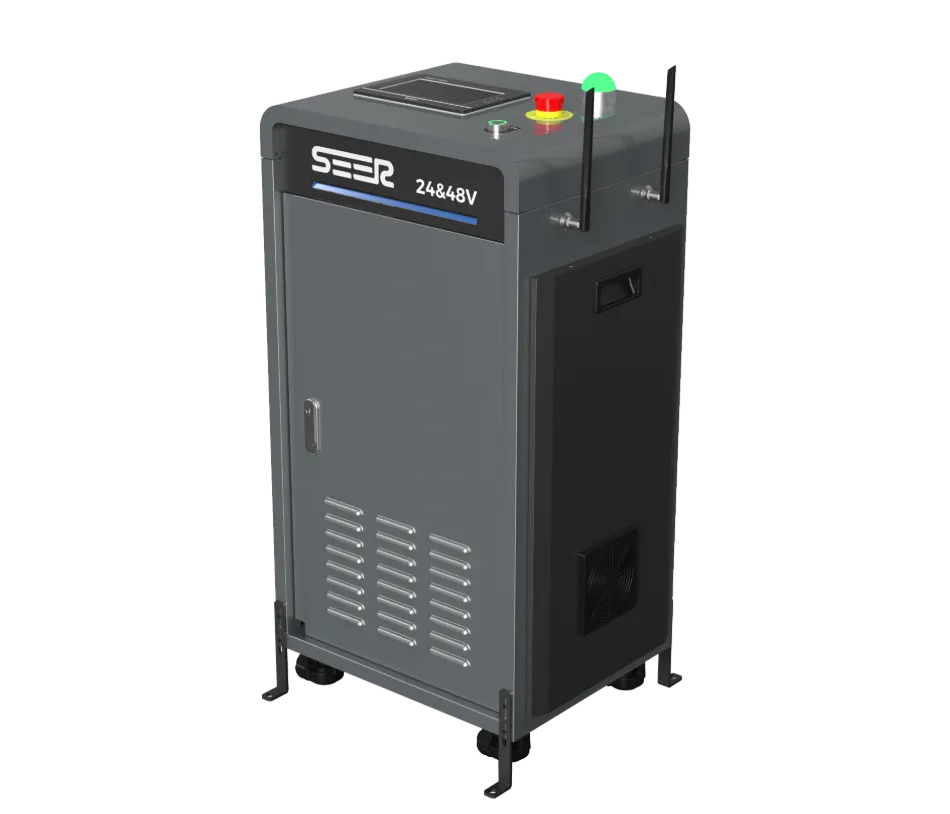

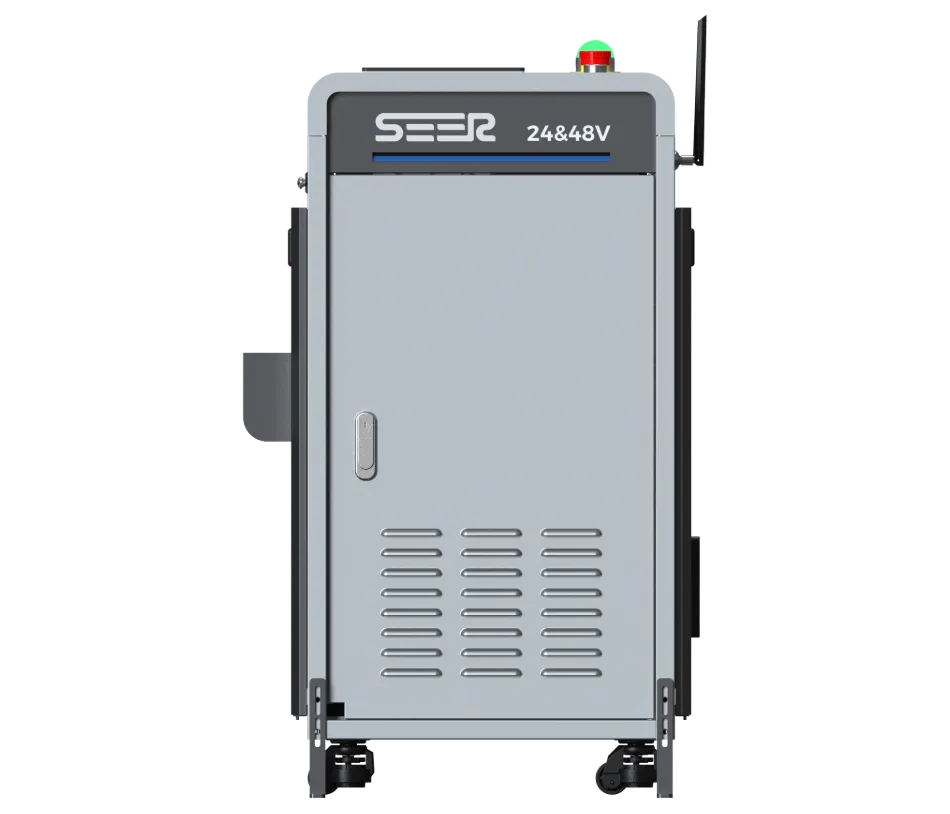

Robot Automatic Charging Station

SCS-C48100D
SCS-C48100D

One Station, Multiple Uses – Fast and Convenient

icon

6 kW High Power, Fast and Highly Compatible

Delivers up to 6 kW output with 48 V / 100 A voltage and current, fully charging in as fast as 1 hour. Compatible with various lithium batteries to meet diverse robot charging needs.

icon

6 Layers of Protection, Charge with Confidence

Built-in safeguards against over-voltage, over-current, short-circuit, reverse connection, leakage, and overheating for a worry-free charging experience.

icon

Multi-Mode Charging, Adaptable and Flexible

Supports three charging modes: protocol-based, state-based, and voltage-based charging, with user-customizable charging curves. Offers both automatic and manual fast-charging options to meet diverse application scenarios.

icon

Comprehensive HMI, All-in-One Interaction

Integrated functions for data display, parameter adjustment, network setup, log event query, and device control, ready to operate independently upon deployment.

icon

Remote Monitoring, Worry-Free Oversight

Monitor and control the system remotely via Roboshop, keeping all operational status under instant supervision.

Product Parameters

input-frequency

50 / 60

Input Frequency (Hz)
dc-output-voltage

32~60

DC Output Voltage (V)
dc-output-current

100

DC Output Current (A)
ip-rating

IP20

IP Rating
dc-output-voltage

60

Maximum Output Voltage (V)
● Standard    ○ Optional    - None
Product model

SCS-C48100D

dom-icon
Product name

Robot Automatic Charging Station

L x W x H

580 x 460 x 980 mm

AC input voltage

380±10% V

Input frequency

50 / 60 Hz

DC output voltage

32 V to 60 V

Maximum output voltage

60 V

DC output current

100 A

Maximum output current

100 A

Maximum output power

6000 W

Weight

50 kg

Connector for manual charging

REMA160

Network

Wi-Fi (recommended), Wired, 5G

Working temperature

0℃ to 40℃

Ambient Humidity

5% to 90%

Working altitude

≤2000 m

Plug specification

Industrial 32A

Contamination level

2

Overvoltage level

Reference standard

EN 62477-1:2012+A11:2014+A1:2017+A12:2021

Suitable product model

48 V, autonomous forklift
