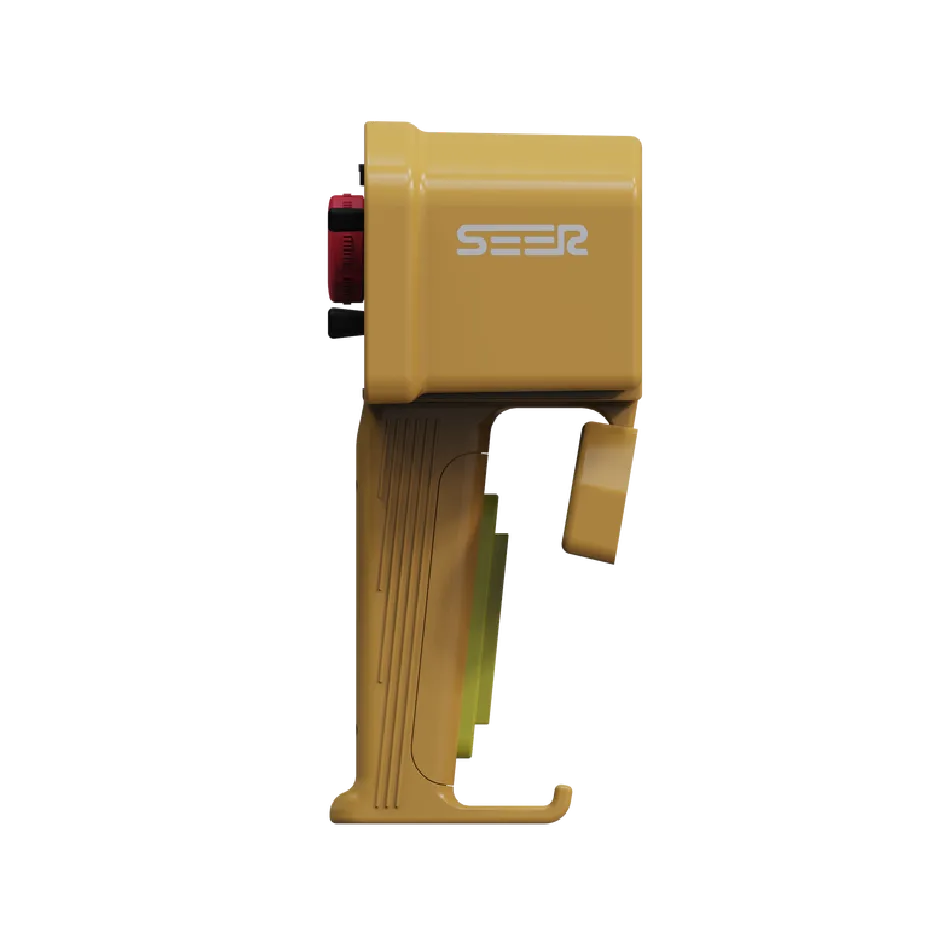

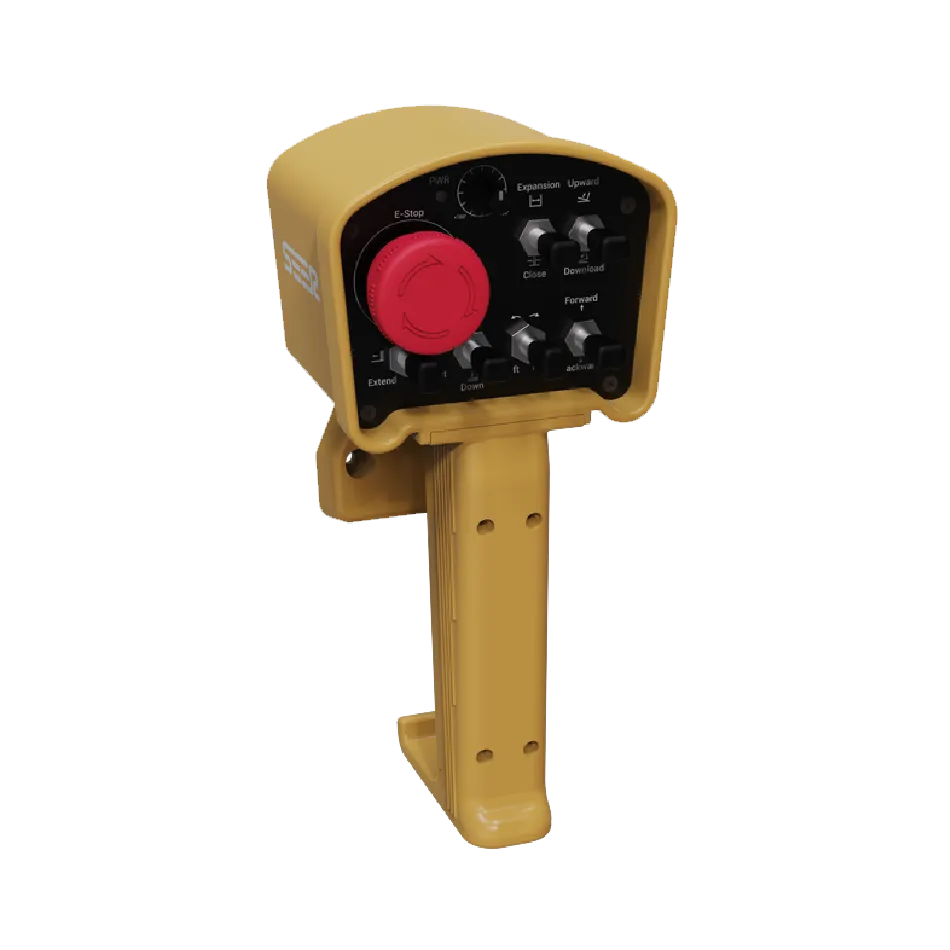

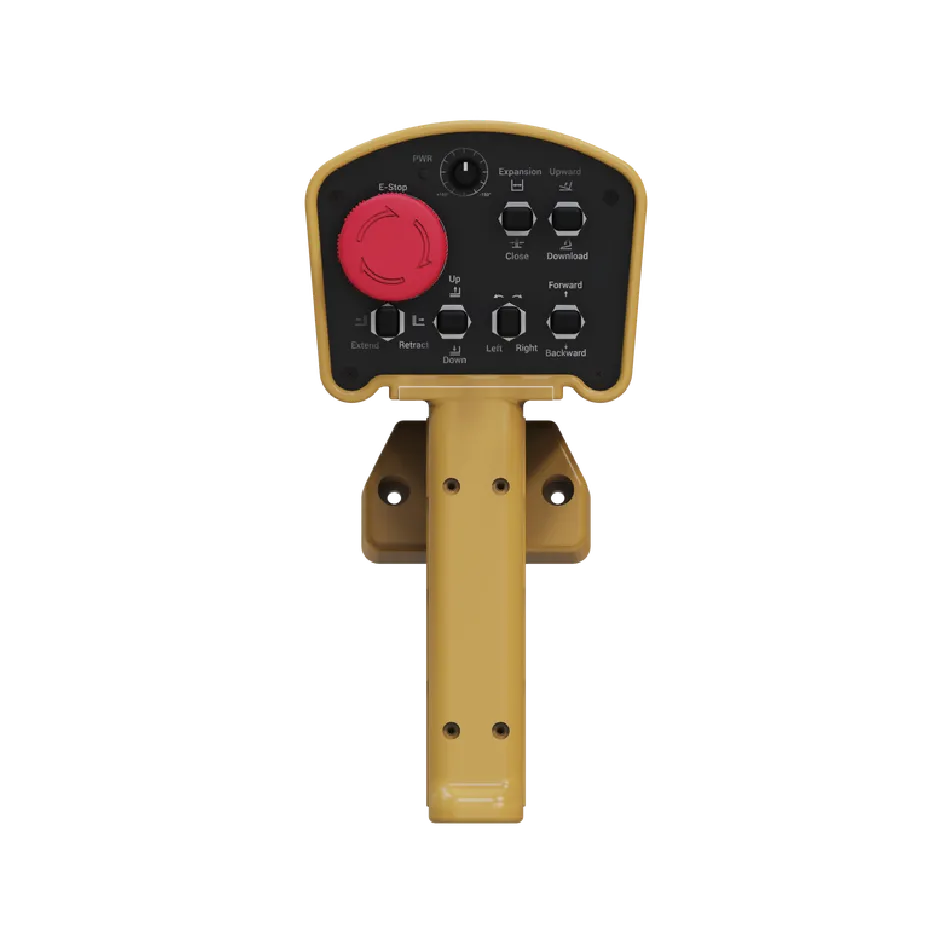

Forklift manual control device

SFL-Handle-ZY
SFL-Handle-ZY

All-Purpose Handheld, Compatible with Multiple Types

icon

Versatile Functions, Six-in-one Control

Covers the vast majority of forklift actions and functions, supporting six major action controls: walking, steering, lifting, tilting forward/backward, moving forward/backward, and fork width adjustment, with an additional slot for a steering potentiometer, providing diverse options.

icon

Easy to Operate, Reliable for Getting Unstuck

Adopting an IO interface hard connection design, it features stable and reliable signal transmission capabilities; when the main control system malfunctions or fails, it can quickly intervene to assist vehicle recovery, ensuring reliable operation, ease of use, and peace of mind, significantly enhancing safety and environmental adaptability.

icon

Wide Voltage Adaptation

This handheld device supports a wide voltage input of 12 V to 60 V, is compatible with various power specifications, has a wide adaptation range and strong stability, meets the power supply needs of multiple scenarios with a single device, and is fully functional and easy to use.

icon

Safe and Reliable

Reserved dual-circuit emergency stop design, synchronized with the main control emergency stop function, compatible with overseas safety controllers, and adaptable to diverse overseas vehicle control requirements.

Product Parameters

input-frequency

204 x 104 x 85mm

L x W x H(mm)
dc-output-voltage

12-60V

Rated voltage (V)
dc-output-current

500 mA

Rated current(A)
dc-output-voltage

Dual-channel Emergency Stop

Emergency Stop
dc-output-voltage

3-position Safety Enable Switch

Enable / Safety Enable
dc-output-voltage

Self-resetting Switch + Potentiometer

Switch Type
● Standard    ○ Optional    - None
Product model

SFL-Handle-ZY

dom-icon
Product name

SEER (Safety) Forklift Handle

L x W x H

204 x 104 x 85 mm
(8.03 x 4.09 x 3.35 in)

Weight

1 kg
(2.20 lb)

Rated voltage

12-60 V

Rated current

500 mA

Emergency Stop

Dual-channel Emergency Stop

Ingress Protection (IP) Rating

IP65

Control Logic

I/O Signal

Enable / Safety Enable

3-position Safety Enable Switch

Ambient Humidity

5%~95%

Operating Temperature

-5℃ to 45℃
(23°F to 113°F)

Aviation Connector

Cnlinko 24PIN

Operating Altitude

≤1200 m
(≤3937 ft)

Switch Type

Self-resetting Switch + Potentiometer

Wiring Harness

2.5 m Spiral Cable
(8.20 ft Spiral Cable)

Control Functions

Forward / Reverse+Left / Right Steering+Lift / Lower+Tilt Forward / Tilt Backward+Reach Forward / Reach Backward+Fork Spacing Adjustment+Steering Analog Signal
