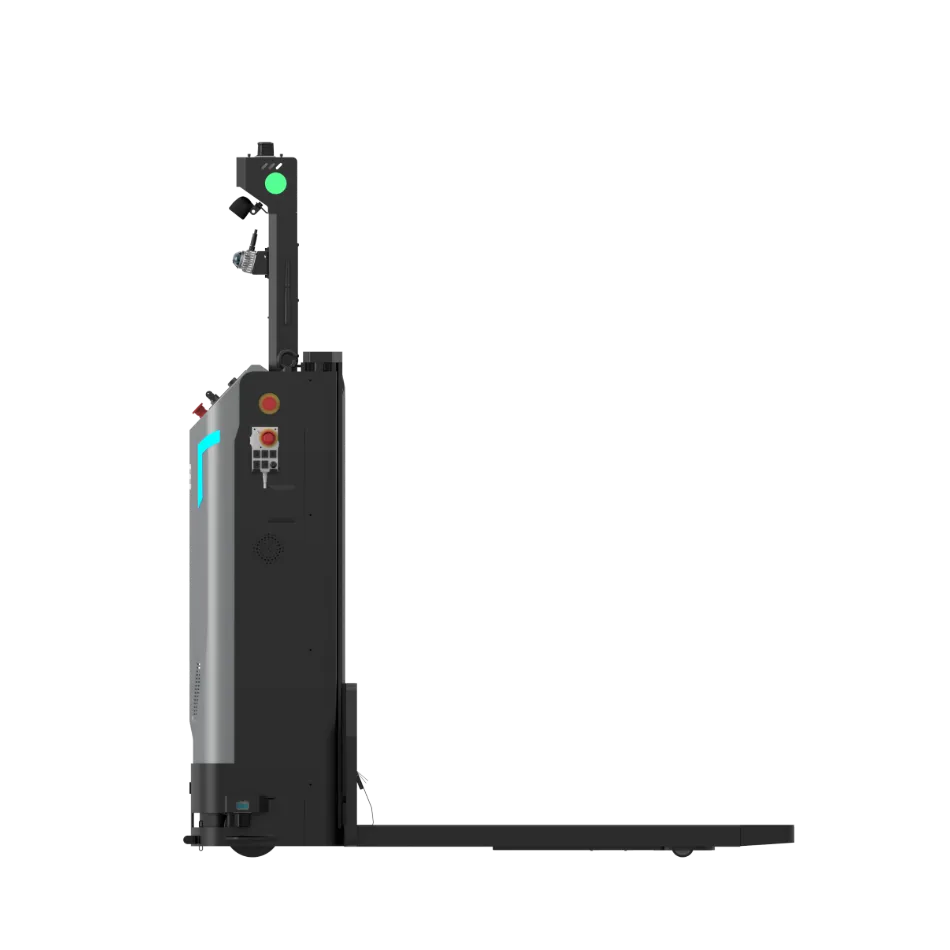

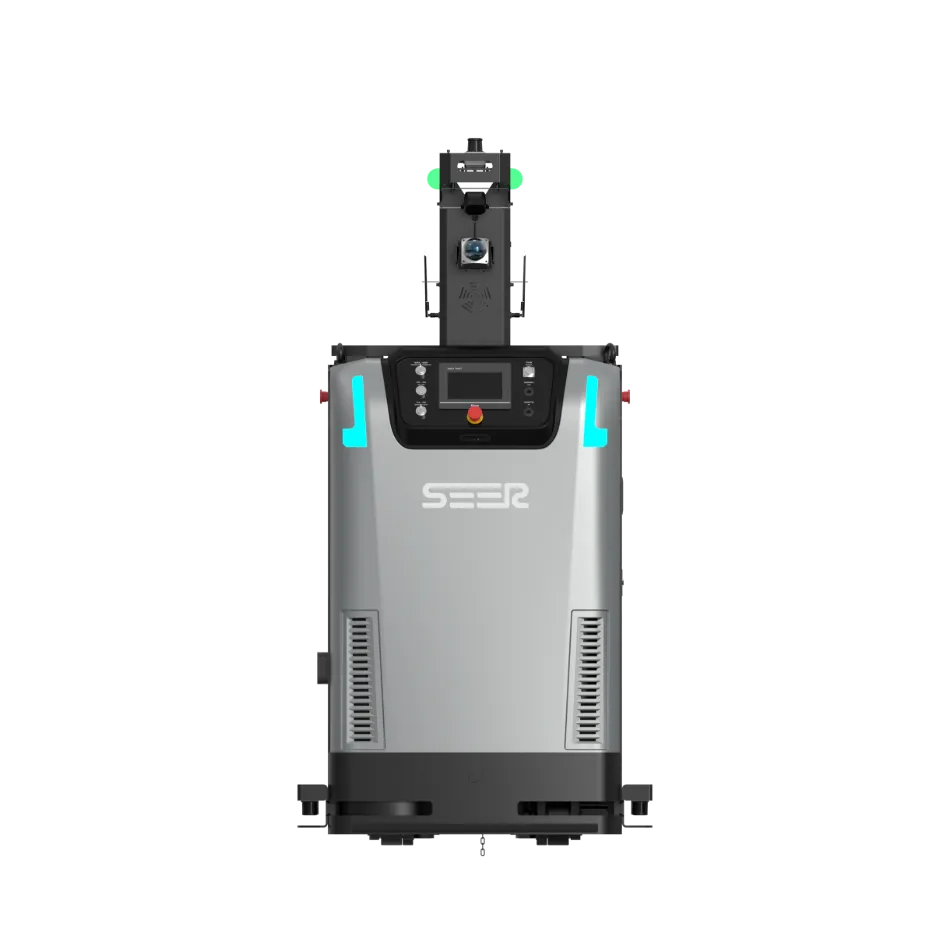

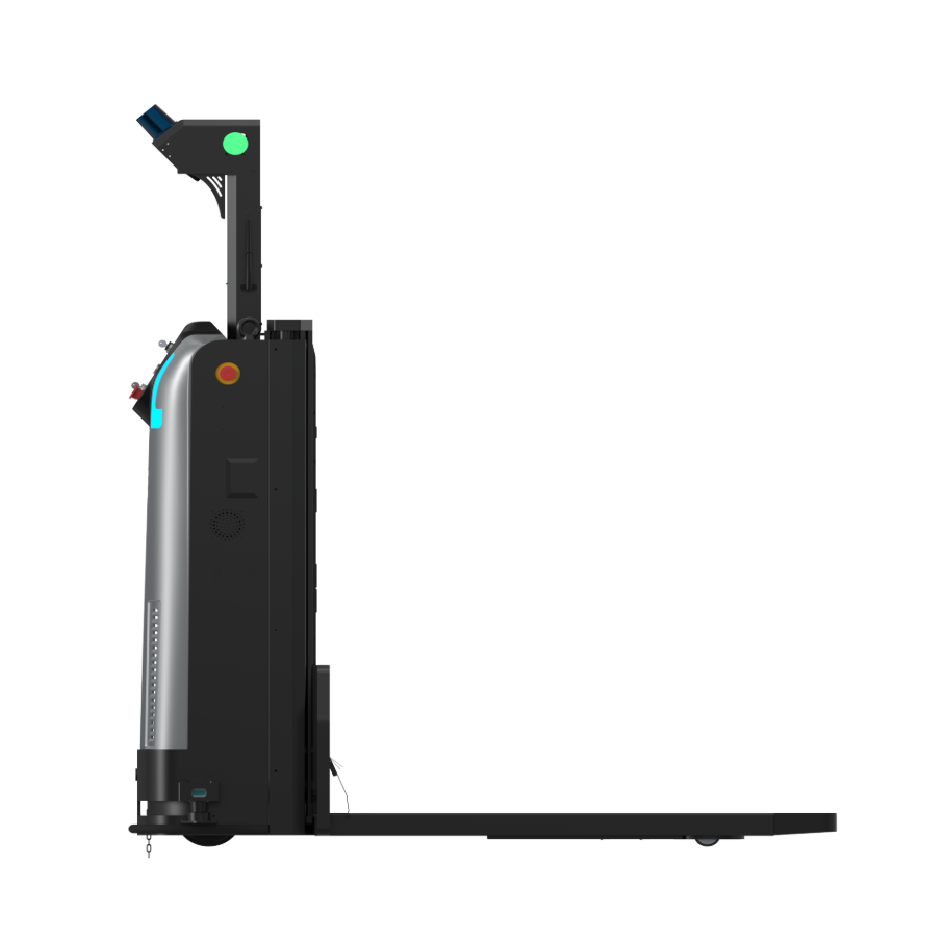

SEER Omnidirectional Stack 1000
download360° Omnidirectional Mobility to Navigate Narrow Aisles
1 T Load Capacity, Agile Maneuvering in Narrow Aisles
Equipped with 360° omnidirectional steering, the forklift enables lateral movement in 1.8 m narrow aisles and agile turning in 1.9 m confined spaces, greatly improving maneuverability.
Space-saving, Efficiency Enhancement
It maximizes space utilization in confined areas, boosting warehouse storage density and operational efficiency.
High Precision, Multi-directional Obstacle Avoidance
Equipped with 3D navigation LiDAR, distance sensors, and hardware self-diagnostics for comprehensive safety protection. Optional front-mounted 3D cameras enable pothole detection and ultra-small obstacle recognition, ensuring safe forward movement. A front contact bumper strip provides immediate stop upon impact, ensuring worry-free safety.
Flexible Routing, Omnidirectional Lateral Movement
Supports flexible path planning with a variety of motion types, such as diagonal trajectories, arcs, lateral movements, detours, and advanced cubic Bézier curve paths.
Customizable Options, Multiple Selections Available
Supports customization of fork width, robot height, color and logo. Tailored to meet the diverse requirements of your unique business scenarios.
Product Parameters
1000
Rated Load Capacity (kg)1000
Rated Load Capacity (kg)1000
Rated Load Capacity (kg)
10-12
Comprehensive Battery Life (h)10-12
Comprehensive Battery Life (h)10-12
Comprehensive Battery Life (h)
1600
Standard Lifting Height (mm)1600
Standard Lifting Height (mm)1600
Standard Lifting Height (mm)
1415
Minimum Turning Radius (mm)1415
Minimum Turning Radius (mm)1415
Minimum Turning Radius (mm)
±10, 1
Positioning Accuracy (mm,°)±10, 1
Positioning Accuracy (mm,°)±10, 1
Positioning Accuracy (mm,°)
1.0 / 1.5
Driving Speed (Full load / No load) (m/s)1.0 / 1.5
Driving Speed (Full load / No load) (m/s)1.0 / 1.5
Driving Speed (Full load / No load) (m/s)| Product model | SOS-1000 |
| Product name | SEER Omnidirectional Stack 1000 |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 1000 kg |
| Load centre distance | 600 mm |
| Weight (with battery) | 800 kg |
| Standard lifting height | 1600 mm |
| Forklift dimensions: L x W x H | 1705 x 1000 x 1995 mm |
| Fork dimensions: L x W x H | 1220 x 210 x 60 mm |
| Fork outer width | 620 / 680 mm |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 1994+200 mm |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 1910+200 mm |
| Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork) | 1924+200 mm |
| Minimum turning radius | 1415 mm |
| Ambient temperature and humidity range | TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation |
| Driving speed: full load / no load | 1.0 / 1.5 m/s |
| Passability (slope / step / gap) | <5% / 10 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±1° |
| Battery specifications | 48 V / 106 Ah (lithium iron phosphate) |
| Comprehensive battery life | 10 h to 12 h |
| Charging time (10% to 80%) | 1 h |
| Charging method | Manual / Automatic |
| Lidar number | 1 (FREE H1 / P+F R2000) +3 (FREE C2) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ● |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
| Product model | SEER Stack Truck |
