Pallet Stacker & Automated Stacking Systems

Stacker Autonomous Forklift

SEER Robotics' all-in-one robot-building solution is powered by our industry-proven SRC series core controllers, seamlessly integrated with SEER-developed software and a wide range of modular components. This comprehensive solution empowers customers to build their own robot fleet within days, enhancing development efficiency and product competitiveness.
Backed by SEER Robotics’ extensive vehicle library and cutting-edge technologies, the robot-building solution includes high-performance SRC controllers, modular robot-building components, and Roboshop—a one-stop implementation and integration platform. It also offers a complete suite of software and hardware tools for rapid robot deployment, along with robot selection guides, commissioning manuals, and professional training programmes. Comprehensive after-sales services are provided, together with ongoing software iteration and upgrade support, ensuring long-term performance and scalability.

Overview

Pallet stackers are essential equipment for factories, warehouses, and production floors where pallets, skids, or totes need transporting or racking. They lift loads onto elevated storage like racking or shelving, making them ideal for environments without loading docks or large forklifts. Designed for tight spaces, electric stacker forklifts allow operators to navigate narrow aisles easily. Their compact size, high lifting capacity, and operational flexibility provide a smart alternative to larger forklifts, perfect for facilities seeking a versatile pallet stacking solution for daily logistics.
Our autonomous stacker forklift features the SRC series core controller for integrated control and scheduling. Equipped with advanced sensors including 3D obstacle avoidance, safety bumper strips, and distance sensors, it delivers 360° all-around safety protection. With a 3-meter lifting capability, it efficiently handles stacking tasks for open pallets, material cages, and racks. The stacker forklift is fitted with a 270° navigation laser and a 360° obstacle avoidance laser. The front body includes a surround bumper strip, while the fork tip has two ranging single-line photoelectric sensors. Its drive system combines F2A, Kinco, and 1253 components, enabling speeds up to 2 m/s. Powered by a 24 V / 173 Ah battery, it supports continuous operation for 8 to 10 hours.

Handling and Stacking

The autonomous stacker forklift is designed with essential functions for cargo transportation and vertical stacking. It can autonomously move, lift, lower, and stack goods efficiently in environments such as warehouses, distribution centers, and logistics hubs.

Fleet Management System

Powered by RDS Fleet Management System, our automated pallet stacker allows for seamless task planning and automatic execution—minimizing the need for manual operation and enabling intelligent coordination across multiple forklifts.

Sensing Technology

The autonomous stacker forklift is equipped with an array of advanced sensors, including 3D lasers, industrial cameras, and ultrasonic sensors. These enable real-time perception of the surrounding environment to ensure precise navigation and safe operation in complex scenarios.

Control System

Integrated with SEER Robotics’ advanced controller, the stacker forklift supports multiple navigation methods—including natural feature recognition, reflectors, QR codes, and magnetic stripes—allowing it to move autonomously and accurately within defined areas.

Remote Monitoring

Support real-time remote monitoring and management via a cloud platform. Operators can easily track performance metrics, monitor task progress, and perform remote diagnostics to ensure smooth, uninterrupted operations.

Scenarios

Logistics ·

It can be used in logistics centers, sorting centers and other places to perform tasks such as cargo loading, unloading and handling.

Warehousing ·

It can be used in storage centers to perform tasks such as handling goods, stacking shelves, and replenishing shelves.

Production ·

It can be used to automatically transport raw materials or finished products on the production line and complete material handling tasks between different processes.

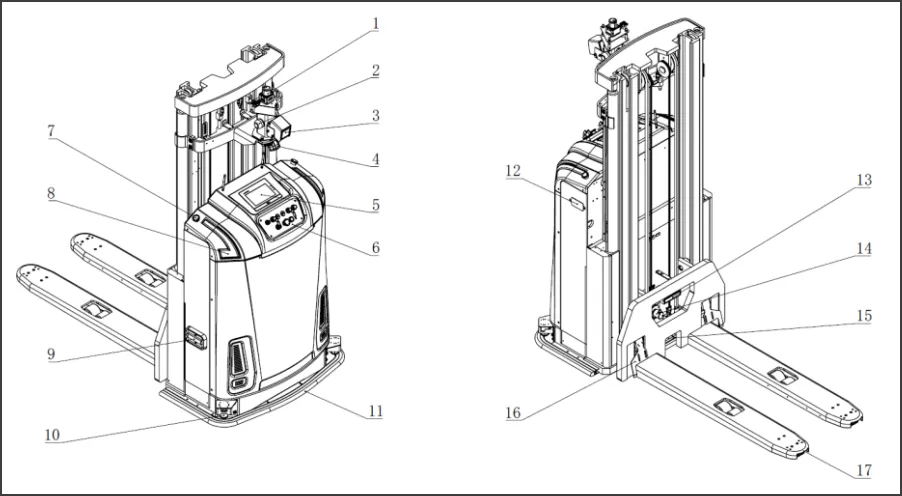

Composition

No.	Name
1	Navigation laser
2	Tricolor light
3	3D Obstacle avoidance camera
4	Blue warning light
5	HMI display
6	SFL-AP500 (Operation panel)
7	Emergency stop button
8	Ambient lamp+turn signal
9	Automatic charging brush
10	Obstacle avoidance laser
11	Bumper strip
12	Manual charging port
13	Carrier recognition camera
14	Draw wire encoder
15	Obstacle avoidance laser
16	Cargo in place switch
17	Distance sensor / collision mechanism

Implementation

01. Controller and Functions

02. Components

03. Vehicle: Space Layout and Design

04. Commissioning

05. Testing and Calibration

Controller and Functions

SRC-2000-F(S): Specified Controller for Autonomous Forklift

Function		Software license name	Explanation	Supporting hardware	Remarks	SRC-2000-F(S)	SRC-3000FS (Forklift)
Standard version SRC-2000 basic functions		rbk_diff	Including map editing, model editing, positioning module, navigation module, differential motion model, peripheral expansion functions (roller assembly, lifting assembly, latent traction), API interface, visual operation, scheduling system access, etc.	———	SEER Robotics can provide hardware selection and design consulting.	●	●
Motion model	Single steering wheel motion model	rbk_steer	Single steering wheel motion model, providing a one-stop solution, including positioning, navigation, configuration, API interface, visual operation, scheduling system access, etc.	———	SEER Robotics can provide hardware selection and design consulting.	●	●
Autonomous forklift function	Forklift basic kit	rbk_fork	When using SRC to transform traditional forklifts such as pallet trucks and stacking trucks, SRC can be connected to the forklift driver, fork, left and right turn signals, cargo detection switches, etc., to achieve a complete automatic forklift control system.	———	SEER Robotics can provide hardware selection and design consulting.	●	●
Autonomous forklift function	Pallet (cage) recognition kit	rbk_pallet	3D vision sensors are added to identify the precise position of the pallet (material cage), so that the autonomous forklift can accurately pick up the pallet (material cage).	Percipio FM850-E2 or other devices that meet the functional requirements.	Select the recognition technology and corresponding hardware according to the actual situation of the pallet (material cage).	○	○
Optional function	Automatic charging function	———	Our company will provide robot end and charging station design solutions related to automatic charging.	———	You can directly purchase our self-made charging station.	●	●
	Precise positioning with QR code	rbk_pgv_loc	When the mobile robot needs to accurately locate at certain sites, it can make precise adjustments to the point by adding a QR code at the site.	Pepperl+Fuchs PGV100R-F200-R4-1,5M or other devices that meet functional requirements.	Positioning accuracy up to ±2 mm.	●	●
	Laser reflector navigation function	rbk_reflector	Based on laser navigation, laser reflector navigation is integrated, and laser reflector navigation is carried out in the designated area, and laser navigation is restored in other areas to achieve free switching of navigation methods.	Diamond-grade reflective film, LiDAR requires SICK nanoScan3 or Pepperl+Fuchs R2000.	Customized standard reflective columns can be provided by SEER Robotics.	●	●
	3D obstacle avoidance function	rbk_3dcamera	3D vision sensors are added to identify and detect some three-dimensional obstacles (such as obstacles that are too low or too high, potholes on the ground, etc.), and choose to stop or detour according to the configuration.	Livox Mid-70 or other devices that meet functional requirements.	———	○	○
	Dynamic environment positioning function	rbk_dynamic_nav	For high dynamic scenes with an environmental change rate greater than 30%, our latest dynamic environmental positioning function can be selected to ensure that the robot does not lose its positioning when facing environmental changes.	———	In locations with large environmental changes, navigation accuracy may be reduced.	●	●
	Wi-Fi roaming function	rbk_roaming	When the user has multiple APs on site, the self-developed Wi-Fi roaming algorithm is used to achieve fast and stable roaming switching of the mobile robot between multiple APs, ensuring the stability of the scheduling system connection.	SRC-2000 hardware version ≥1.2.11	The on-site AP deployment needs to meet certain requirements to achieve the optimal roaming effect.	●	●
	Script function	rbk_script	The controller supports script programming function and can write Python scripts to control complex upper-level mechanisms (such as robotic arms, telescopic reloading mechanisms, fork mechanisms, roller assembly, lifting assembly, loading and unloading mechanisms, electric push rods, etc.).	———	———	●	●
Other services	Custom adaptation service	———	Customized adaptation service refers to the additional adaptation service provided by our company for some special equipment required by customers, such as drivers, batteries, ambient lamps, etc., when customers purchase more than a certain amount at one time.	———	Quote based on actual workload and procurement volume	○	○
Other services	Logo removal service	———	Logo removal service means that when the customer purchases more than a certain amount at once, our company can provide a logo-free version of the SRC controller.	———	———	○	○
