UL Certification, Highly Cost-Effective
The robot has passed the UL certification (UL 583:2023) and other related certifications. It boasts high cost-effectiveness while ensuring good performance.
AI Deep Learning, Recognize Multiple Carriers
With AI deep learning technology, it can recognize pallets in various specifications, different colors, wrapped or damaged pallets, and racks and cages. It can also adaptively recognize from multiple angles and with high precision for stable loading and unloading.
1.4 T Load Capacity, 10-hour Endurance
The robot has a maximum load capacity of 1.4 tons and a maximum endurance of up to 10 hours for longer uninterrupted operation.
±10 mm Positioning Accuracy, Smooth Operation in Narrow Aisle
Supports multiple navigation methods such as SLAM, reflector, and NFL. The repeat positioning accuracy can reach ±10 mm. The robot width is only 1184 mm and the minimum aisle width is 1384 mm, suitable for narrow aisle scenarios.
Compatible with Various Pallets, 3-meter Stacking
Compatible with closed pallets and open pallets. Supports up to 3 meters of stacking, reach, and transport. It can meet the applications of various scenarios.
Flexible Customization, 4 Options Available
Supports four customization methods including fork width, overall height, color, and logo to flexibly meet various customization needs.
Product Parameters
1400
Rated Load Capacity (kg)1400
Rated Load Capacity (kg)1400
Rated Load Capacity (kg)
8
Comprehensive Battery Life (h)8
Comprehensive Battery Life (h)8
Comprehensive Battery Life (h)
1600 / 3000
Standard Lifting Height (mm)1600 / 3000
Standard Lifting Height (mm)1600 / 3000
Standard Lifting Height (mm)
1480
Minimum Turning Radius (mm)1480
Minimum Turning Radius (mm)1480
Minimum Turning Radius (mm)
±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)±10, ±0.5
Positioning Accuracy (mm,°)
1.2 / 1.5
Driving Speed (Full load / No load) (m/s)1.2 / 1.5
Driving Speed (Full load / No load) (m/s)1.2 / 1.5
Driving Speed (Full load / No load) (m/s)| Product model | SSR-1400US |

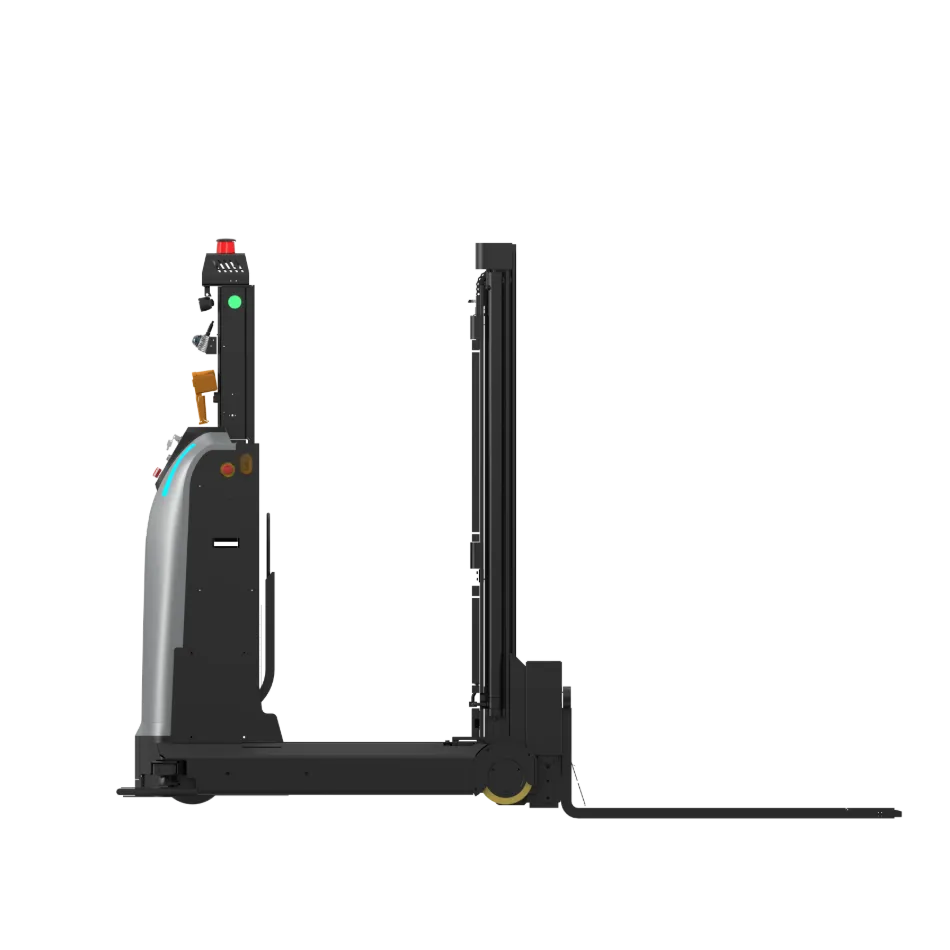

| Product name | SEER SlimReach 1400 |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet / closed pallet |
| Rated load capacity | 1400 kg |
| Load centre distance | 500 mm |
| Weight (with battery) | 1980 kg |
| Standard lifting height | 1600 / 3000 mm |
| Forklift dimensions: L x W x H | 2162 x 1840 x 2180 mm |
| Fork dimensions: L x W x H | 1220 x 122 x 40 mm |
| Fork outer width | 400 to 610 mm (ajdustable) |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 2306+200 mm |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 2261+200 mm |
| Minimum turning radius | 1480 mm |
| Ambient temperature and humidity range | TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation |
| Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | <3% / 10 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery specifications | 24V / 210 Ah (lithium iron phosphate) |
| Comprehensive battery life | 8 h |
| Charging time (10% to 80%) | 2.5 h |
| Charging method | Manual / Automatic |
| Lidar number | 1 (P+F R2000) +3 (SICK NanoScan3 HV) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1 m/s / 1.5 m/s | ≤50 cm / ≤72 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
| ISO 3691-4 | ● |
| EMC | ● |
| UN38.3 | ● |
| RED | ● |
| Product model | SEER Reach Truck |
